Subsequent Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front speed sensor.

    451119 REMOVING AND INSTALLING FRONT SPEED SENSOR

  2. Install brake disc.

    465019 REMOVING AND INSTALLING FRONT BRAKE DISC

  3. Install cover.

    >  WM, 852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER

  4. Only for all-wheel drive vehicles and for rear-wheel drive vehicles on which the wheel bearing/wheel hub was replaced:

    Tighten drive shaft/axle journal at the wheel hub. Get another mechanic to help by pressing the brake.

    1. 4.1  Tighten nut -2-  .

      Axle journal to wheel hub: > Initial tightening 250 Nm (184.4 ftlb.)  > Final tightening + 60°

      Drive shaft to wheel hub: > - >

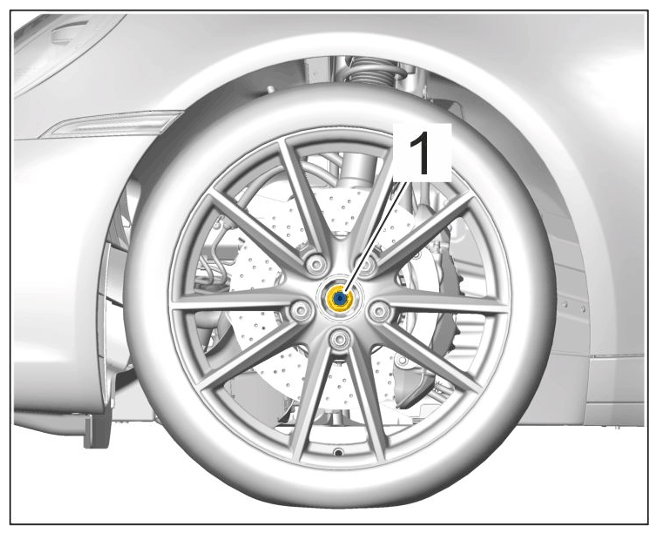

      G15527117Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing drive shaft/axle journal to wheel hub

    2. 4.2  Fit hub cap -1-  .

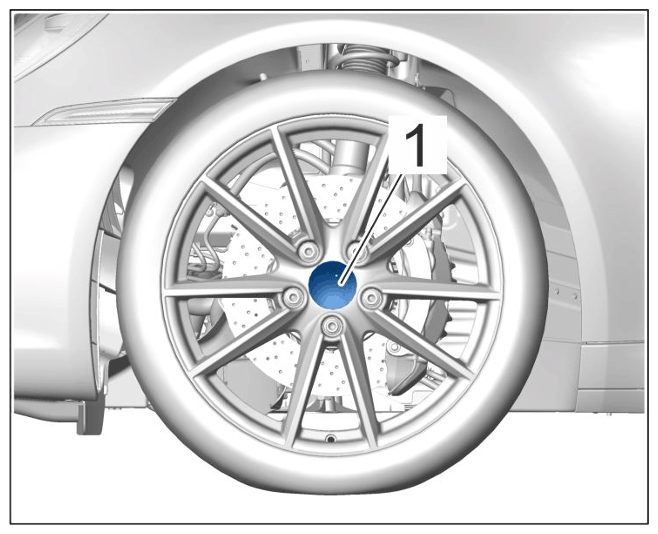

      G15527118Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Hub cap

  5. Perform suspension alignment and make adjustments if necessary.

    449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
