Installing Wheel Bearing Housing

Information

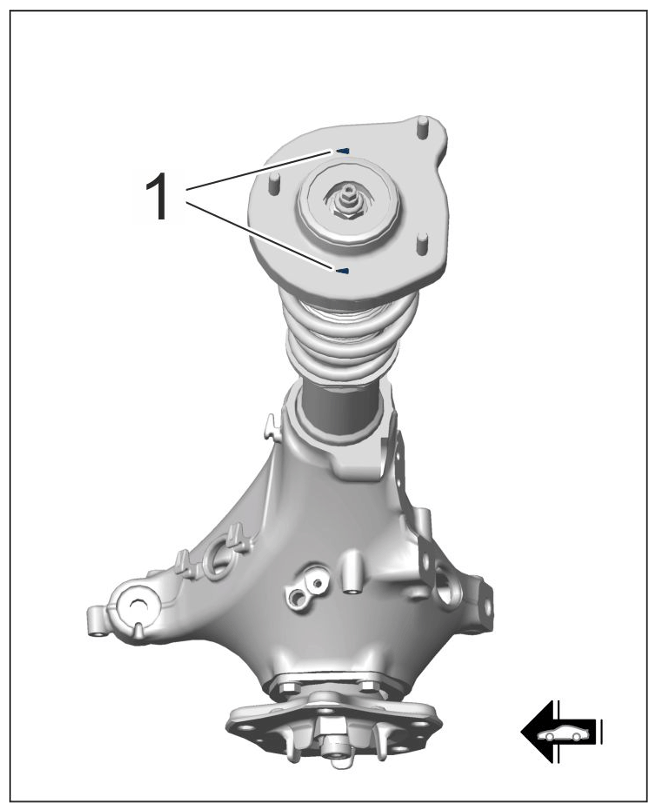

Align spring strut according to the direction of travel arrows -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Direction of travel arrows

1. Fit spring strut on wheel bearing housing.

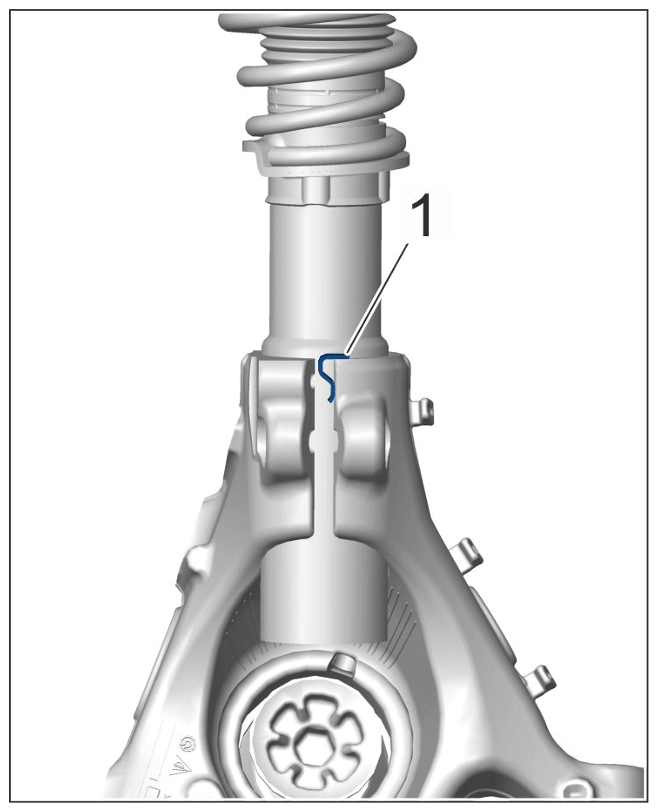

   1. 1.1  Guide the spring strut as far as it will go into the wheel bearing housing using the position plate.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Position plate

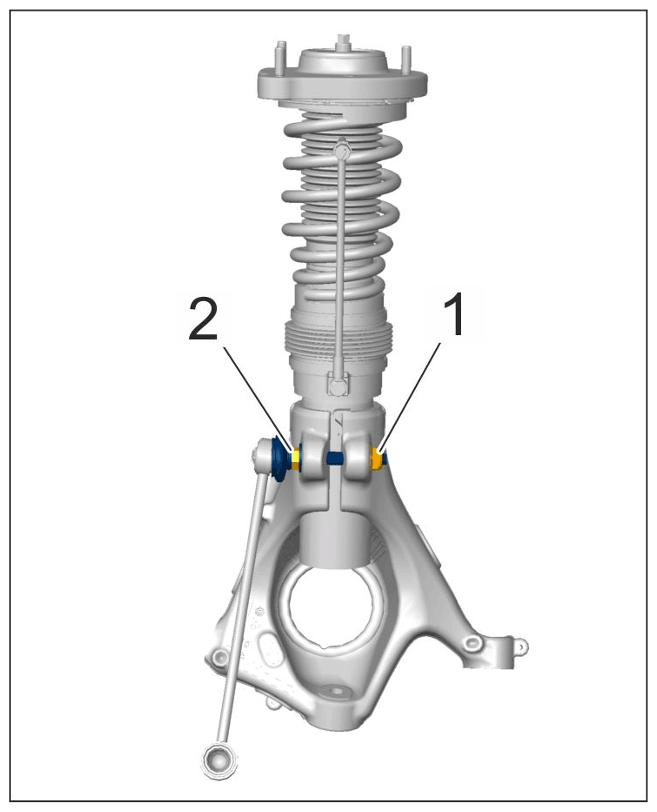

   2. 1.2 For vehicles without PDCC:  Fit connecting link on the wheel bearing housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for connecting link on wheel bearing housing

      1. 1.2.1  Fit fastening nut -1-  (it will be tightened when installed).

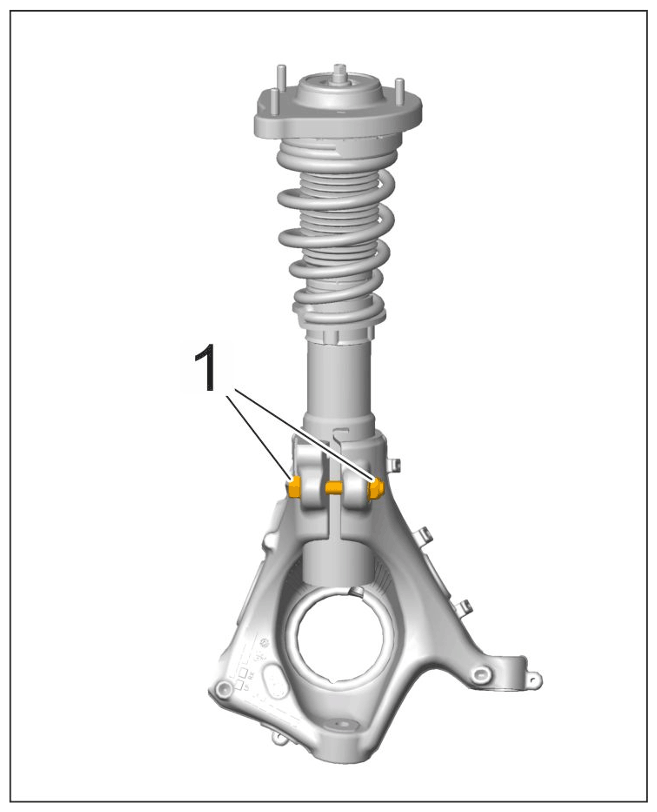

   3. 1.3 For vehicles with PDCC:  Fit threaded joint for damper pipe clamp -1-  . (It will be tightened when installed)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Threaded joint for damper pipe clamp

      Information

      • Optimoly HT can be ordered using the Porsche Electronic Parts Information (PET)  .
      • The thread of the drive shaft must not be greased!
2. Grease the drive shaft toothing with Optimoly HT.
3. Move wheel bearing homing with spring strut into installation position.
   1. 3.1  Guide drive shaft into the wheel hub.

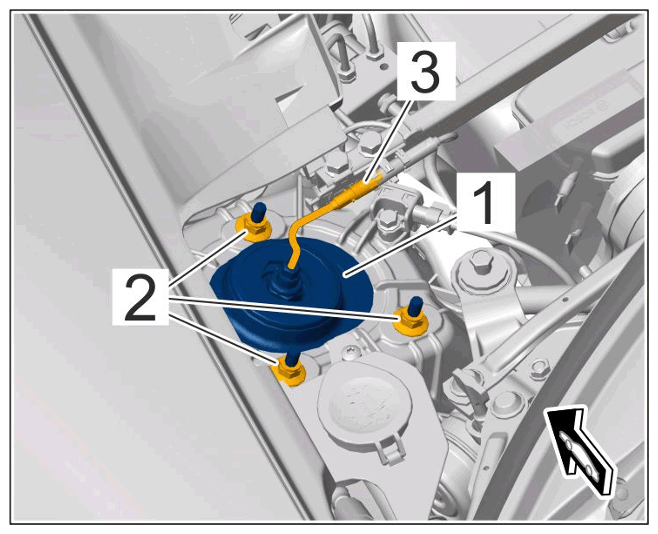

4. Fit spring strut -1-  on the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Attachment of spring strut to body

   1. 4.1  Position nuts -2-  according to the marking.
   2. 4.2  Tighten nuts -2-  . > Tightening torque 30 Nm (22 ftlb.)
   3. 4.3  Connect and lock electric plug connection -3-  .

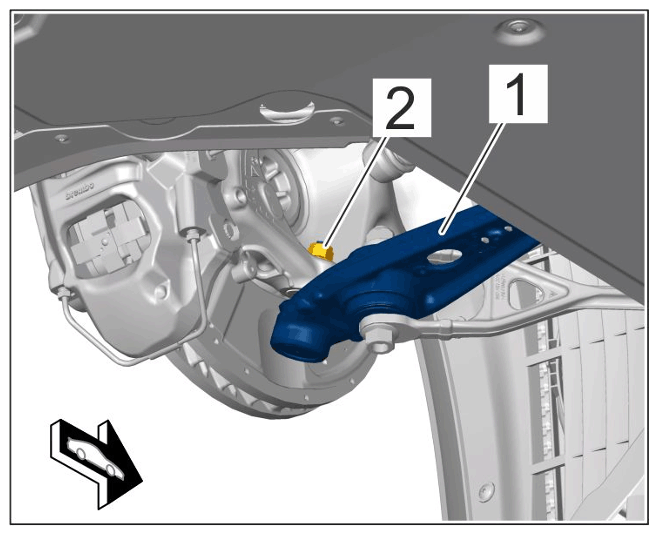

5. Fit lower trailing arm -1-  on the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for lower trailing arm on wheel bearing housing

   1. 5.1  Tighten nut -2-  . > Tightening torque 100 Nm (74 ftlb.)

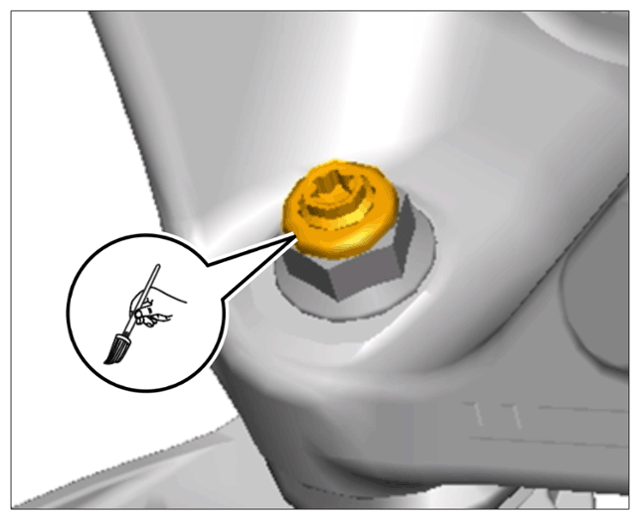

   2. 5.2  Seal the threaded joint securing lower trailing arm to wheel bearing housing with wax as shown in -Illustration-  . Use Pfinder AP14/4 for this (see Parts Information)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Applying wax on marked area

6. Tighten threaded joint securing spring strut to wheel bearing housing
   1. 6.1 For vehicles without PDCC:  Tighten fastening nut and counter at the hexagon -2-  on the connecting link.

      > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 180°

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for connecting link on wheel bearing housing

   2. 6.2 For vehicles with PDCC:  Tighten threaded joint for damper pipe clamp -1-  . > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 180°

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Threaded joint for damper pipe clamp

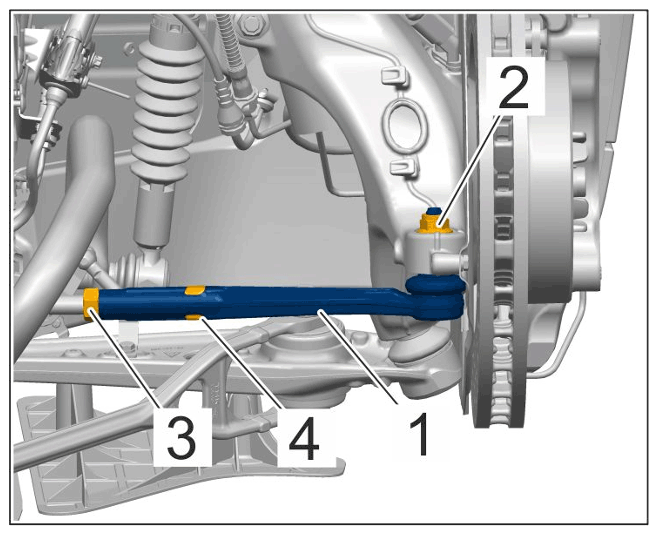

7. Fit tie-rod ball -1-  on the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for tie-rod ball

   1. 7.1  Tighten nut -2-  . > Tightening torque 85 Nm (62.7 ftlb.)
   2. 7.2  Seal threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration-  . Use Pfinder AP14/4 for this (see Parts Information)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Applying wax on marked area (shown on threaded joint securing lower trailing arm)

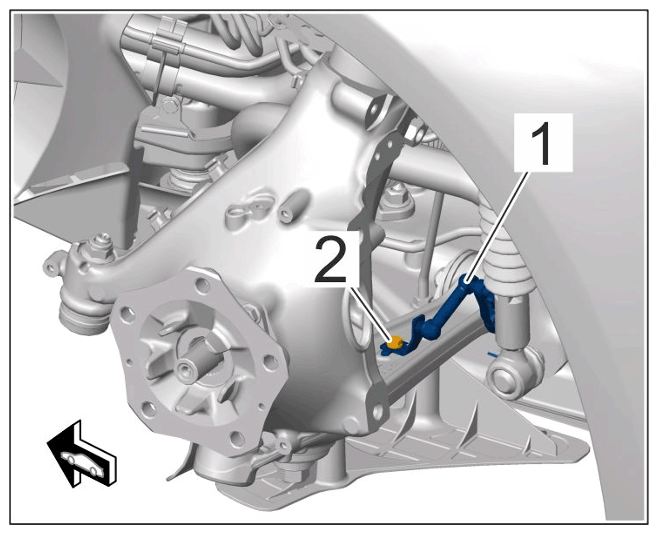

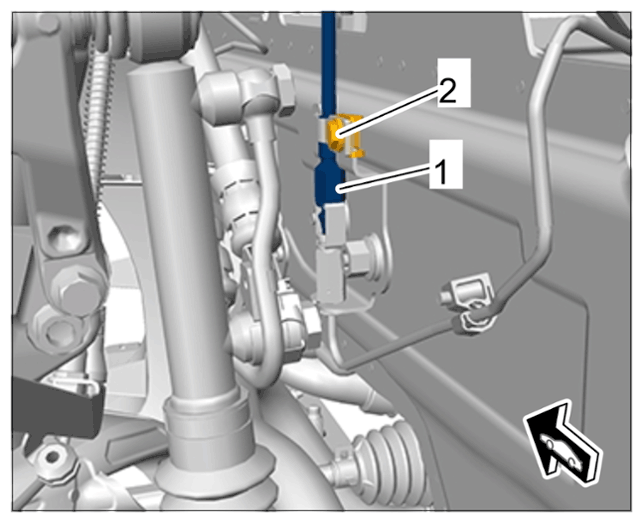

8. Fit angle sensor for headlight beam adjustment -1-  on the lower trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for angle sensor for headlight beam adjustment on lower trailing arm

   1. 8.1  Tighten screw -2-  . > Tightening torque 8 Nm (6 ftlb.)

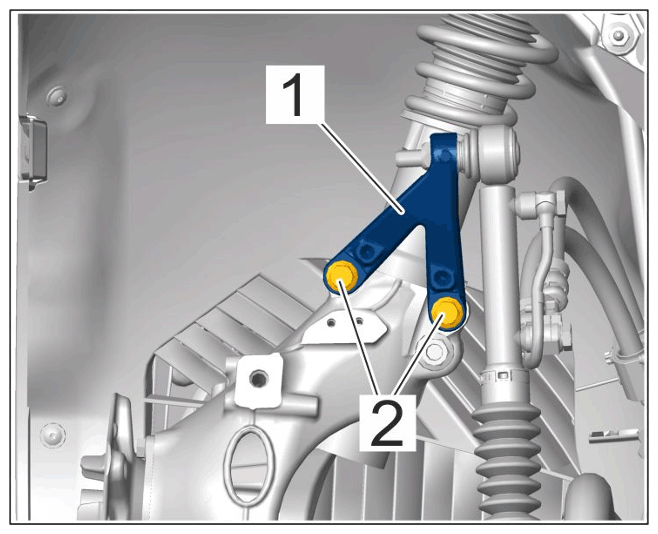

9. Only for vehicles with PDCC:  Fit PDCC adapter -1-  on the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for PDCC adapter

   1. 9.1  Tighten screws -2-  . > Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 60°
10. Only for vehicles with front axle lift system:  Close the separating coupling -1-  on the hydraulic line in the wheel housing.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Separating coupling for front axle lift system

    1. 10.1  Guide top line into the separating coupling until the lugs of the separating coupling are fully engaged.
    2. 10.2  Tighten fastening screw -2-  on line bracket. > Tightening torque 4 Nm (3 ftlb.)

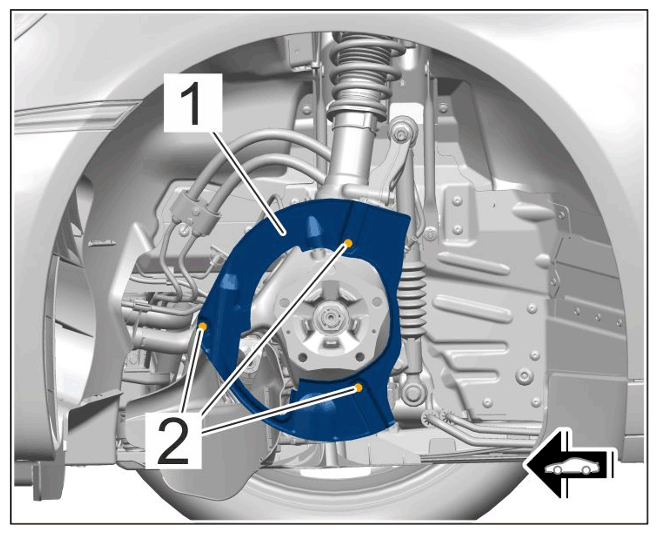

11. Install brake disc cover plate -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake disc cover plate

    1. 11.1  Tighten screws -2-  on brake disc cover plate. > Initial tightening 4 Nm (2.9 ftlb.)  > Final tightening + 45 (33 ftlb.) °
