Preliminary Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Removing the drive shaft by swivelling out the wheel bearing housing (with spring strut fitted) is not permitted because this can cause damage in the spring strut mount. > Not permitted: Swivelling out wheel bearing housing

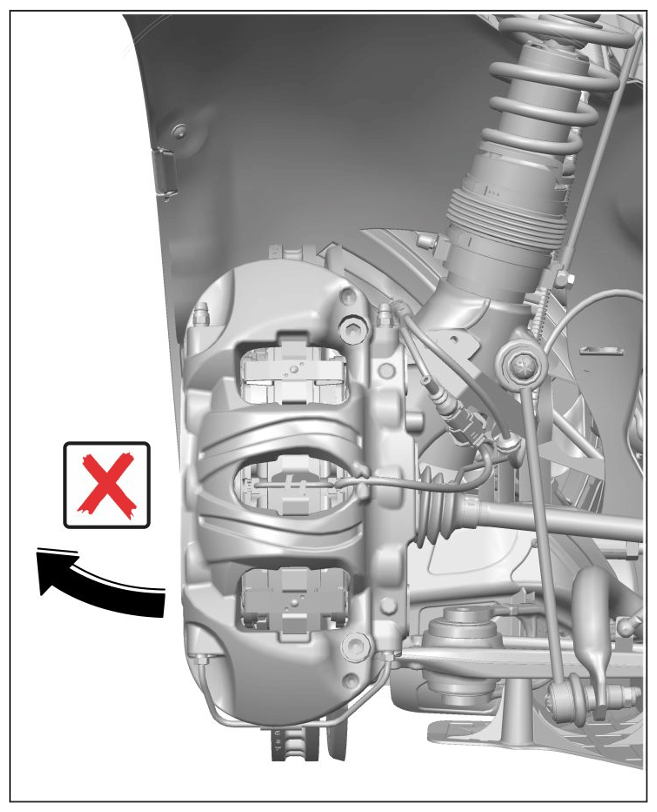

G15527049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Not permitted: Swivelling out wheel bearing housing

  1. Remove all-wheel final drive.

    >  WM, 398819 REMOVING AND INSTALLING ALL-WHEEL FINAL DRIVE

  2. Remove front wheel.

    440519 REMOVING AND INSTALLING WHEEL

    440519 REMOVING AND INSTALLING WHEEL WITH CENTRAL BOLT

  3. Only for vehicles without central bolts:

    Screw in wheel bolts by approx. 5 turns by hand.
