Installing Front Drive Shaft (With Central Bolts)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
- Secure components to prevent them from falling down.

Information

You will need a second mechanic to help you with this step.

Prepare front drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

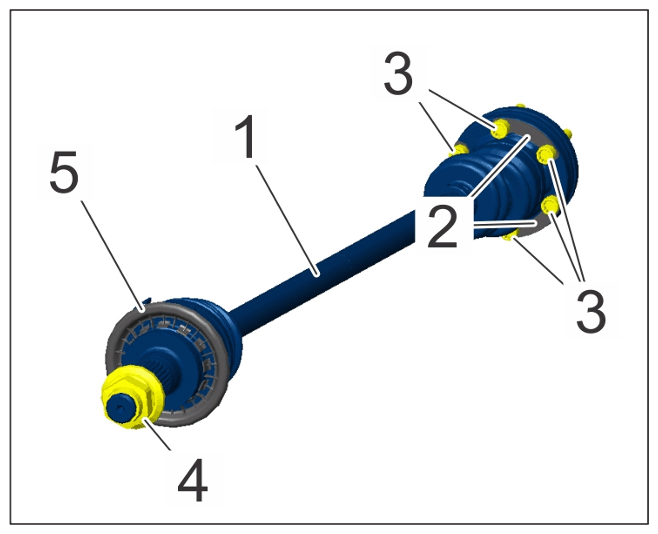

Drive shaft, complete
1. 1.1 Replace plates -2- and collared cheese head bolts (M8 x 45) -3- .
2. 1.2 Replace hexagon nut (M22 x 1.5) -4- .
3. 1.3 Replace protective ring -5- and fit new protective ring -5- .
Coat splines on the drive shaft with Molub Alloy Paste TA . > Drive shaft splines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

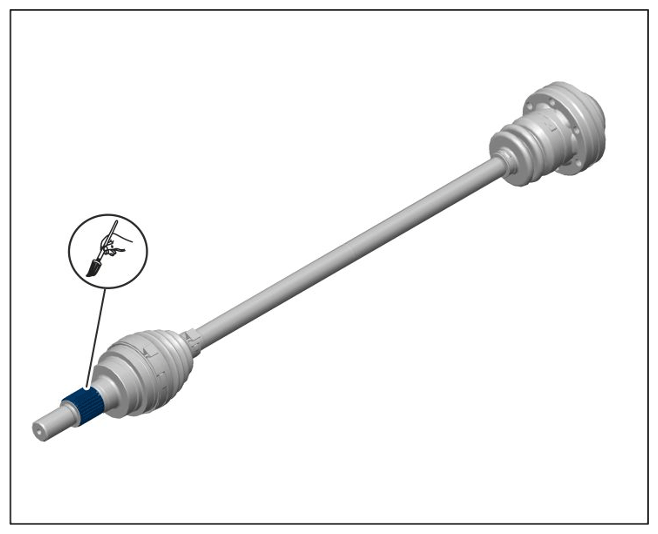

Drive shaft splines
Install front drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

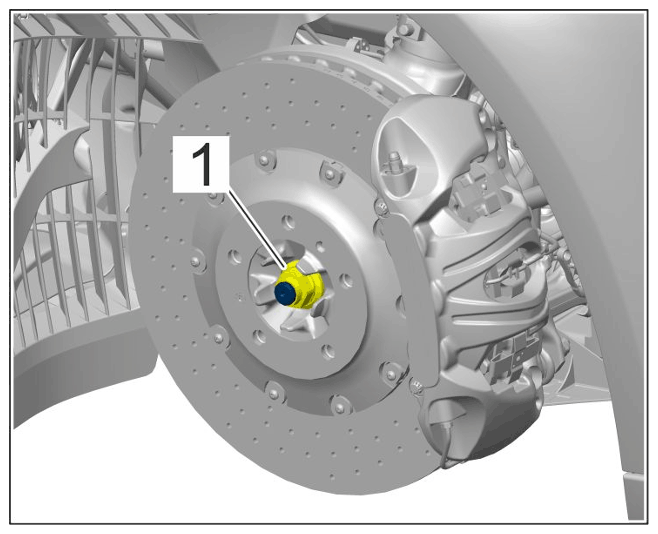

Nut securing drive shaft to wheel hub
1. 3.1 Insert front drive shaft and secure it using suitable aids to prevent it from falling down.
2. 3.2 Get a second mechanic to press the brake.
3. 3.3 Tighten nut -1- .
  > Initial tightening 250 Nm (184.4 ftlb.)

  > Final tightening + 60°
