Removing Control Arm
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information

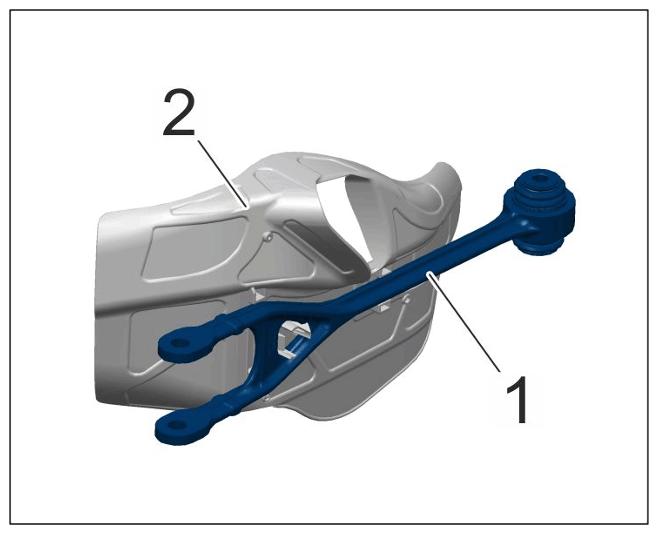

Control arm -1-
is removed together with brake disc air guide -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Control arm with brake disc air guide

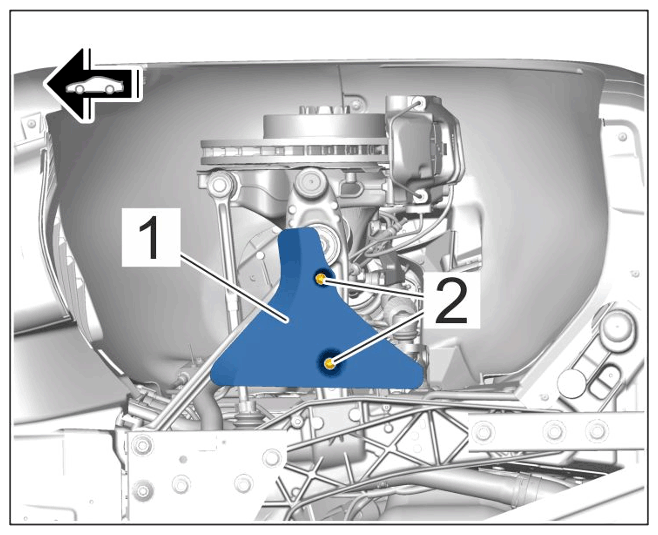

- Remove cover on lower trailing arm -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for cover on lower trailing arm
- 1.1
Unscrew and remove screws -2-
.

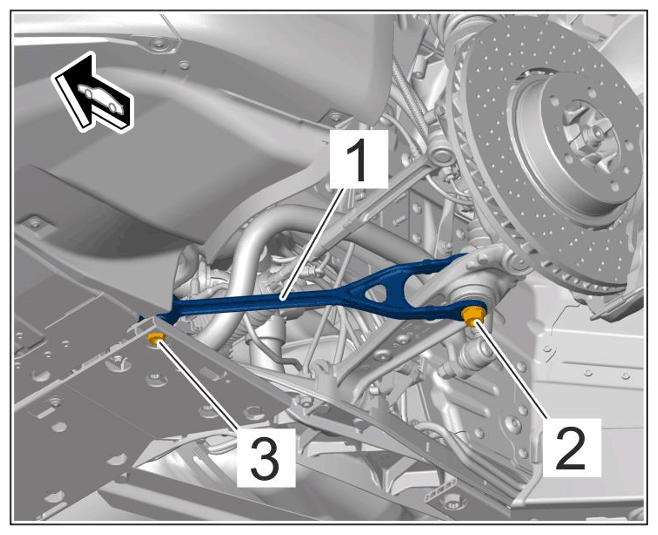

- Remove control arm -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for control arm
- 2.1
Loosen threaded connection -2-
.
- 2.2
Unscrew screw -3-
.
