Removing Lower Trailing Arm

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover on lower trailing arm -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for cover on lower trailing arm
1. 1.1 Unscrew and remove screws -2- .

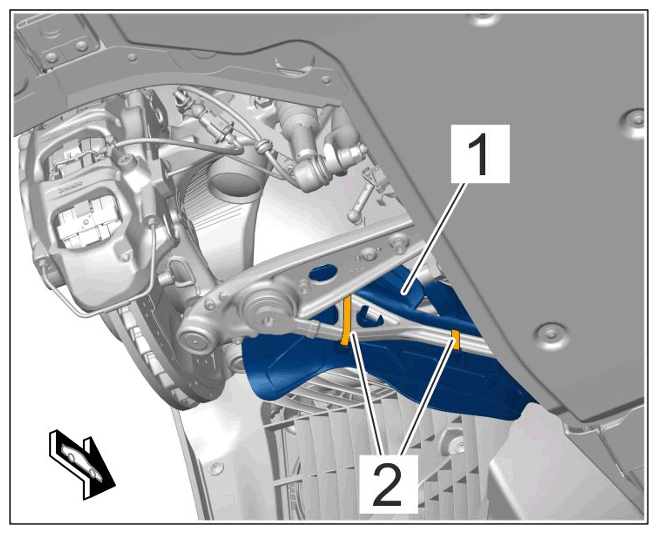

Loosen air guide for brake disc -1- and turn it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for brake disc air guide
1. 2.1 Cut tie-wrap -2- .

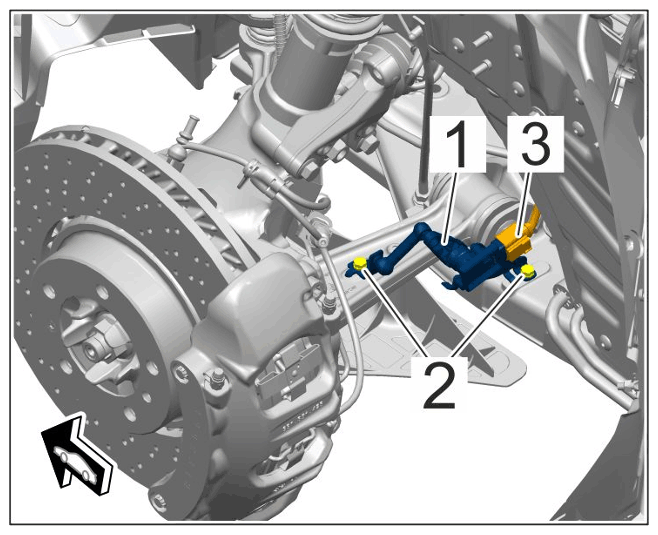

Remove angle sensor for headlight beam adjustment -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for angle sensor for headlight beam adjustment
1. 3.1 Unscrew and remove screws -2- .

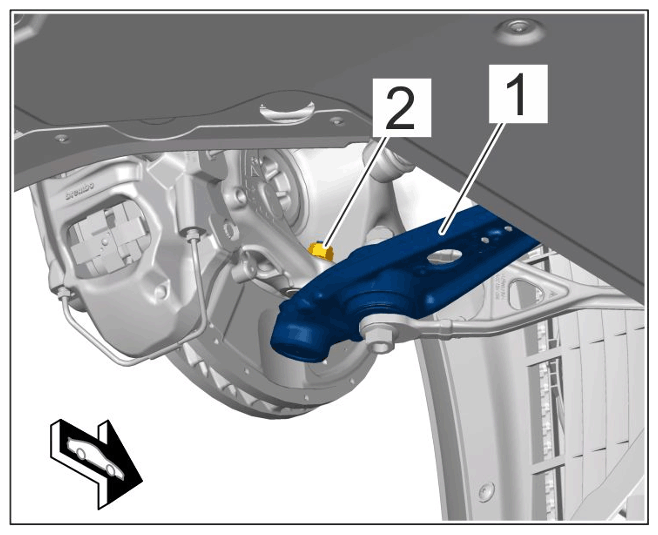

Remove lower trailing arm -1- from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm on wheel bearing housing

4.1 Screw off nut -2- .

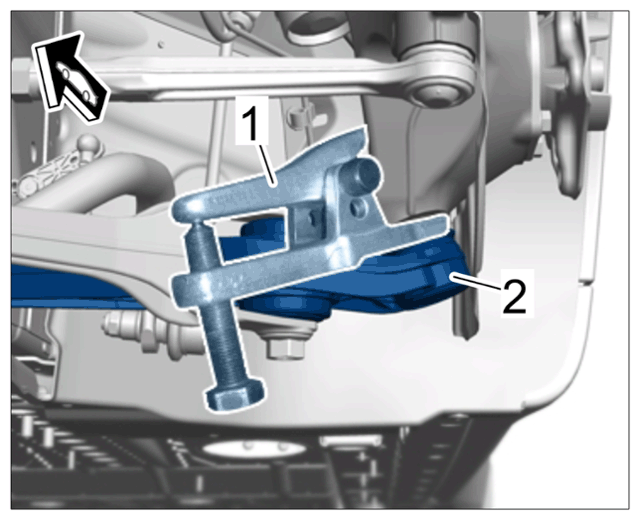

4.2 Press off lower trailing arm using > 9560 - press-out tool-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press-out tool 9560 on lower trailing arm

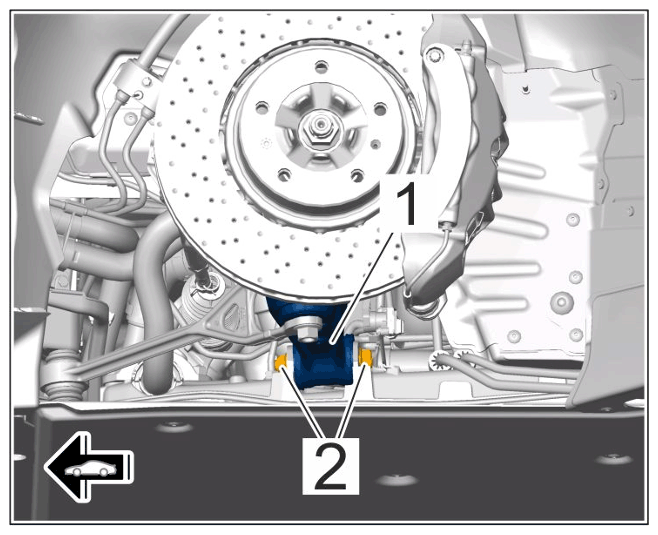

Remove control arm -1- from lower trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for control arm
1. 5.1 Loosen threaded joint -2- .

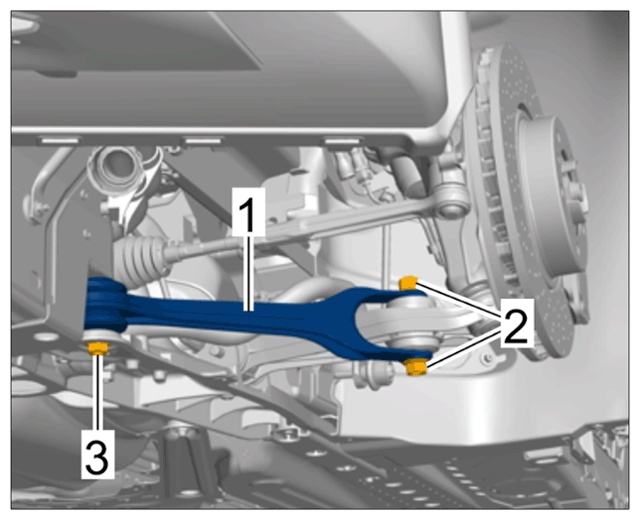

Remove lower trailing arm -1- from front-axle cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm on front-axle cross member
1. 6.1 Loosen threaded joint -2- .
