Removing And Installing Lower Control Arm
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

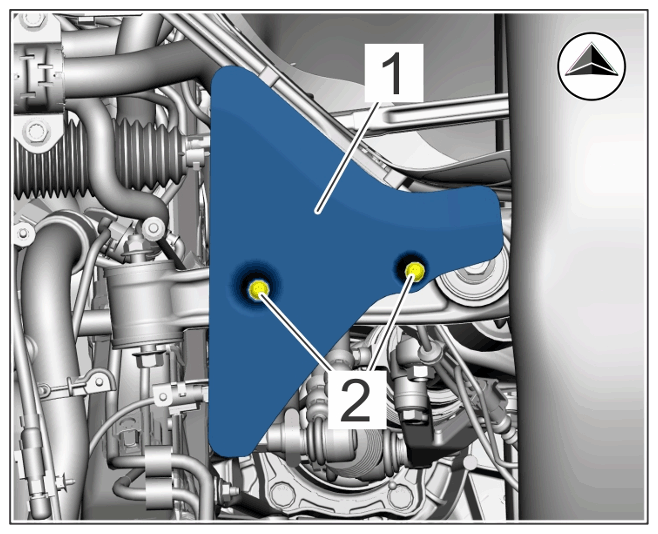

Lower front axle control arm cover
- 1.1
Remove screws -2-
and cover.
- Install cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Lower front axle control arm cover
- 2.1
Fit holder -2-
with screws -2-
, tighten screws.
> Tightening torque 10 Nm (7.5 ftlb.)
