Removing Front-Axle Support

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front-axle support -1-  .

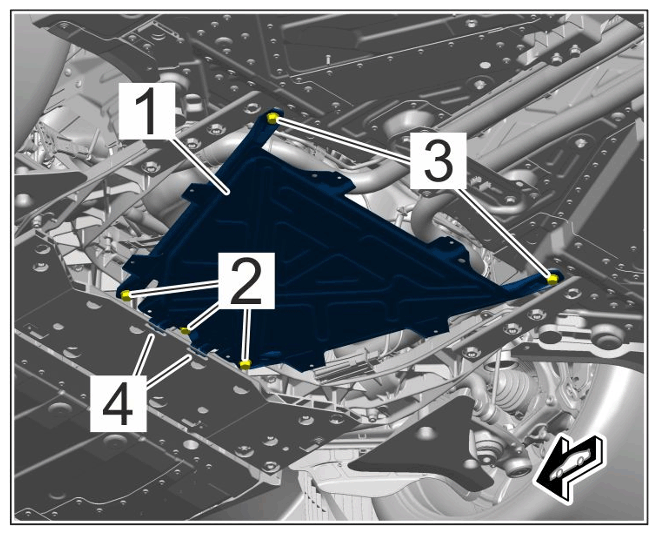

    G15526973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1. 1.1  Unscrew and remove screws -2-  .
    2. 1.2  Unscrew and remove screws -3-  .
    3. 1.3  Disengage front-axle support on the front-axle cross member -4-  .
