Removing Cylinder Head Cover - Cylinder Bank 4-6

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

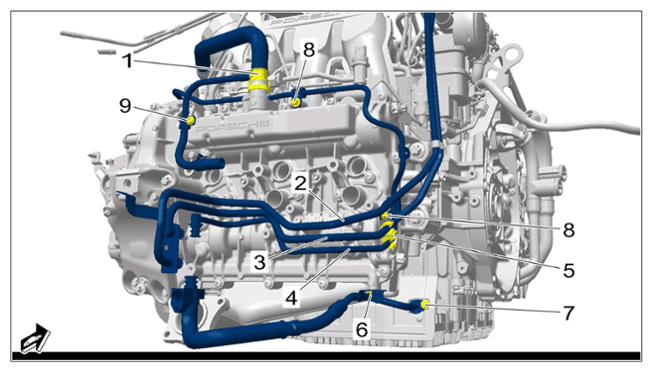

Disconnect turbocharger lines.
Release and disconnect quick connector -1- .

Unclip lines -2 to 4- from retaining clip -5- .

Unscrew screws -6 and 7- and remove turbocharger oil line.

Unscrew and remove screws -8 and 9- .

Lay lines aside.

Catch escaping oil and close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger lines

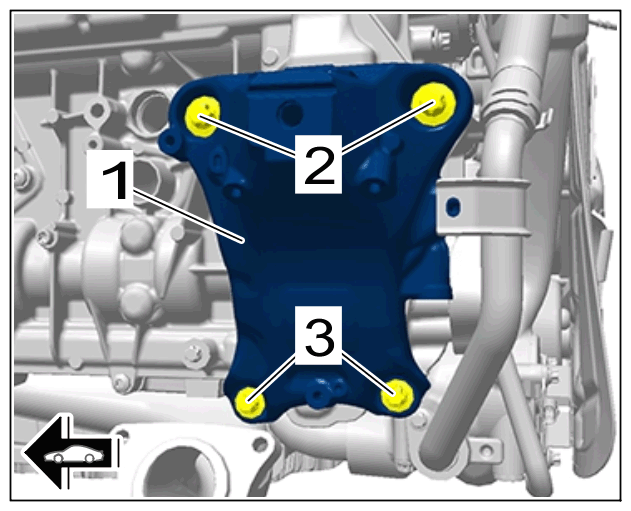

Remove bracket for engine mount -1- .
Unscrew and remove screws -2 and 3- .

Remove bracket for engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount bracket (shown on cylinder bank 1-3)

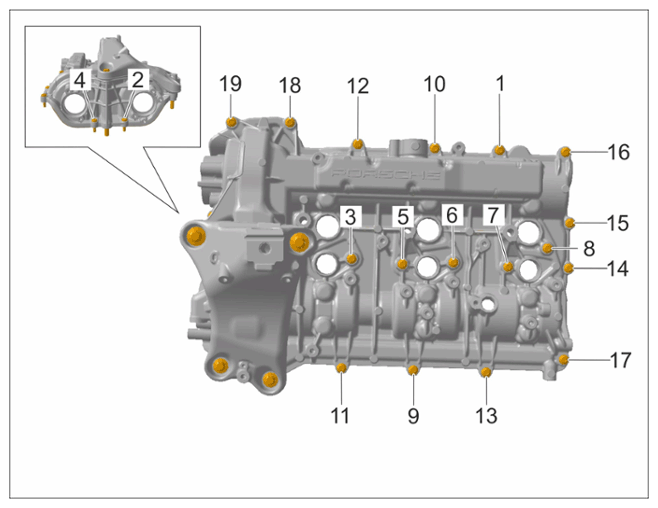

Remove the cylinder head cover.
Unscrew screws in the sequence -19 to 1- .

Remove the cylinder head cover.

Clean cylinder head cover seal, check sealing faces for damage and replace, if necessary.

Fig 1: Cylinder Head Cover Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head cover screws
