Component Overview Of Cylinder Head Cover
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

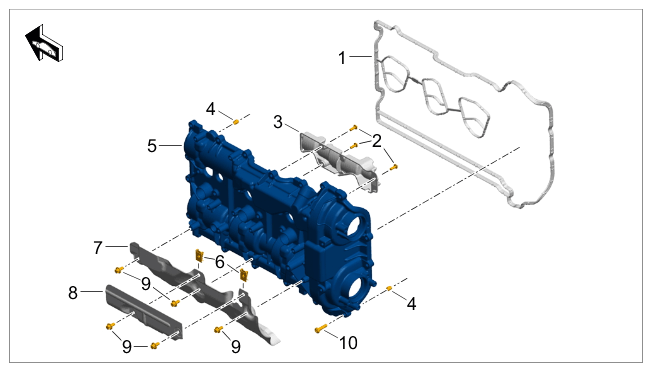

Assembly overview - cylinder head cover (view of bank 1-3)
| 1 | Cylinder head cover seal |
| 2 | Screw, M5 x 14 for pre-separator |
| 3 | Pre-separator |
| 4 | Dowel sleeve |
| 5 | Cylinder head cover |
| 6 | Speed nut, M6 |
| 7 | Lower part of heat shield |
| 8 | Upper part of heat shield |
| 9 | Screw, M6 x 12 |
| 10 | Screw, M6 x 25 - cylinder head cover |
