Removing Valve-Stem Seal

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off valve-stem seals using > 3364 - puller  .

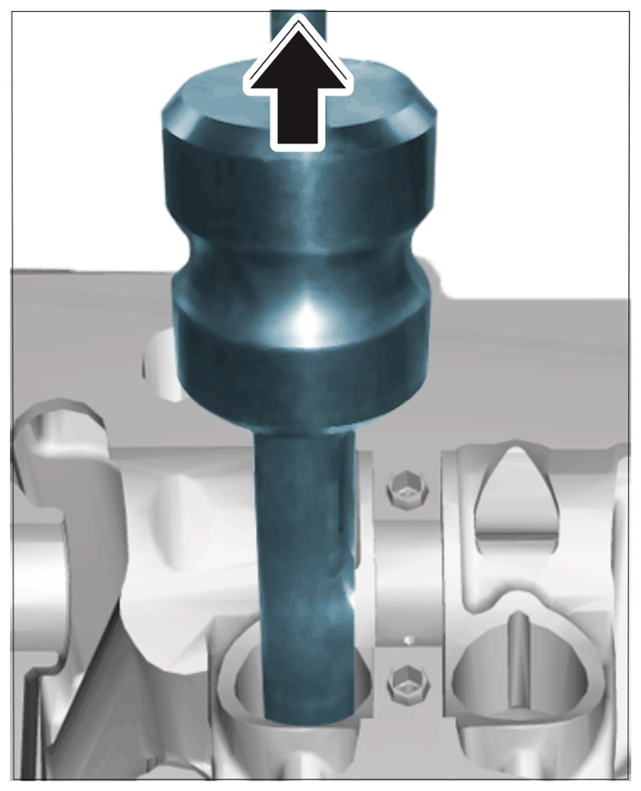

    G15488516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off valve-stem seal

  2. Check valve springs, valves, valve guides and valve seats for damage and replace if necessary.
  3. Thoroughly clean cylinder head and all parts before assembly.
