Component Overview

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

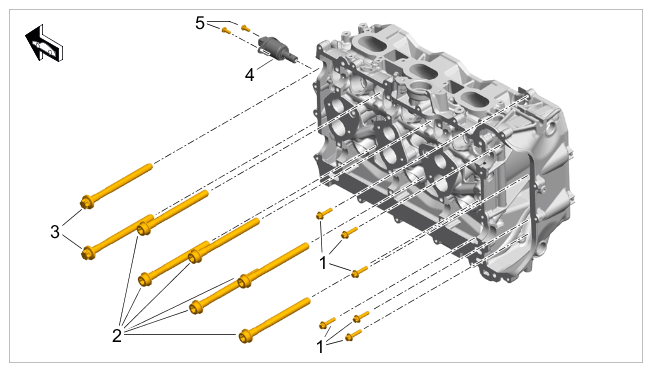

Fig 1: Cylinder Head Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of cylinder head

1	Screw, M6 x 25
2 and 3	Screw, M12 x 1.5 x 140
4	Solenoid valve for valve lift adjustment
5	Fastening screw, M5 x 12
