Installing Hydraulic Valve For Valve Lift Adjustment

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Coat new O-ring on the valve with new engine oil.

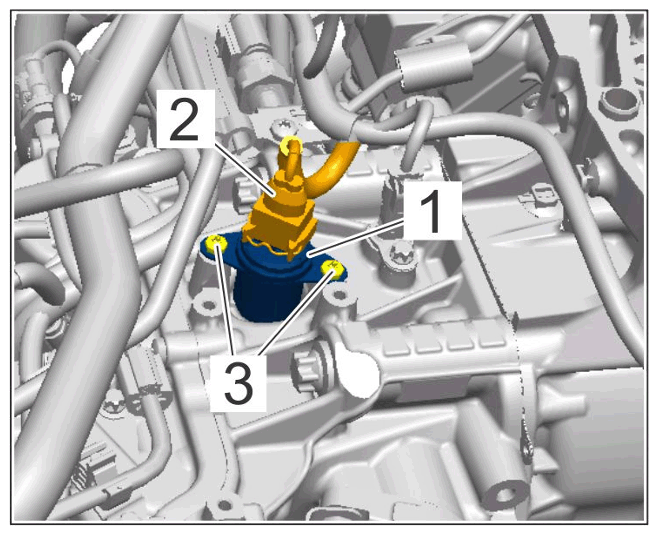

Install valve -1- with new O-ring.
Fit valve.

Fit and tighten screws -3- .

> Tightening torque 8 Nm (6 ftlb.)

Connect cable plug -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve for valve lift adjustment
Cylinder bank 4-6:

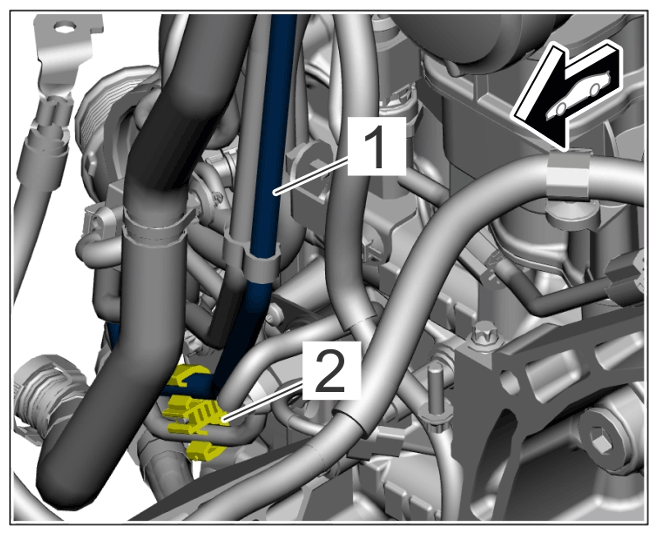

Unclip coolant line -1- at holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line on turbocharger
