Removing Actuator For Camshaft Control

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

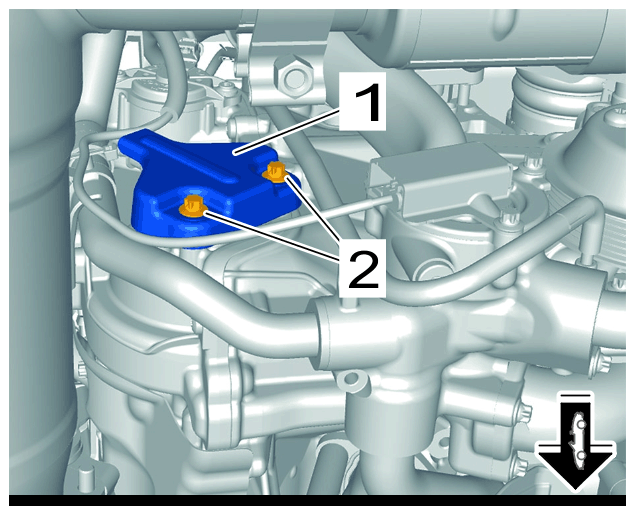

Remove heat shield -1- on actuator for camshaft control.
Unscrew screws -2- and remove heat protection shield.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on actuator for camshaft control

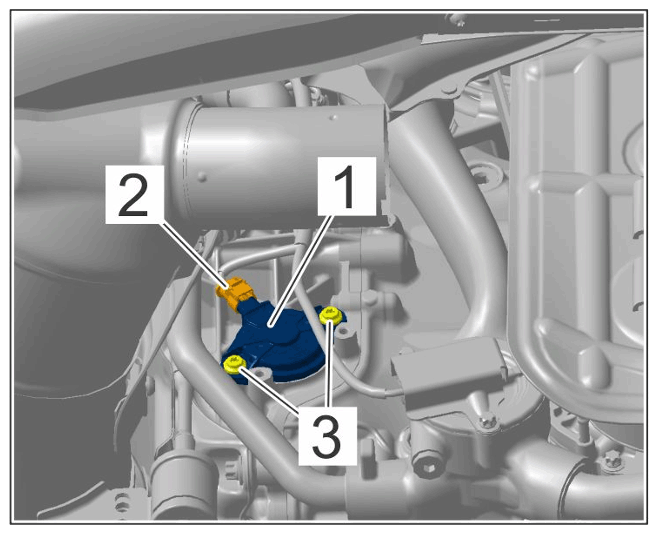

Remove actuator for camshaft control -1- .
Pull off cable plugs -2- .

Unscrew screws -3- and pull off actuator for camshaft control -3- .

Replace aluminium screws!

Replace sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuator for camshaft control (outlet side shown)
Clean sealing faces on the cylinder head.
