Installing Actuator For Camshaft Control

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace seals and O-rings.
Coat all O-rings and sealing surfaces with a light coating of Vaseline to prevent damage to the O-rings.
Lubricate all bearing locations with a light coating of engine oil (unless a different procedure is specified).

Grease new sealing ring -1- on actuator for camshaft control with the prescribed lubricant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

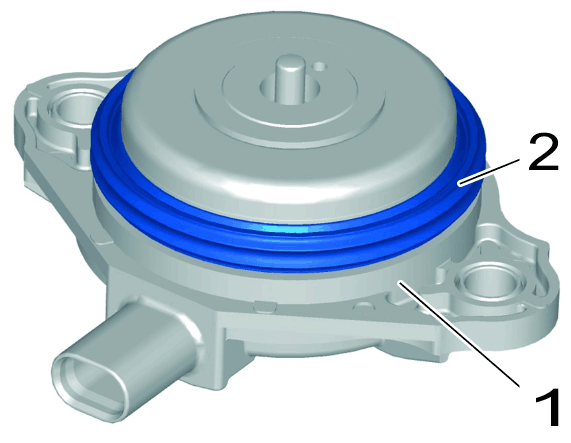

Sealing ring on actuator for camshaft control
Install actuator for camshaft control -1- .
Fit and tighten new aluminium screws -3- .

Tightening torque: > Tightening torque 5 Nm (3.5 ftlb.) + 0.5 Nm (0.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

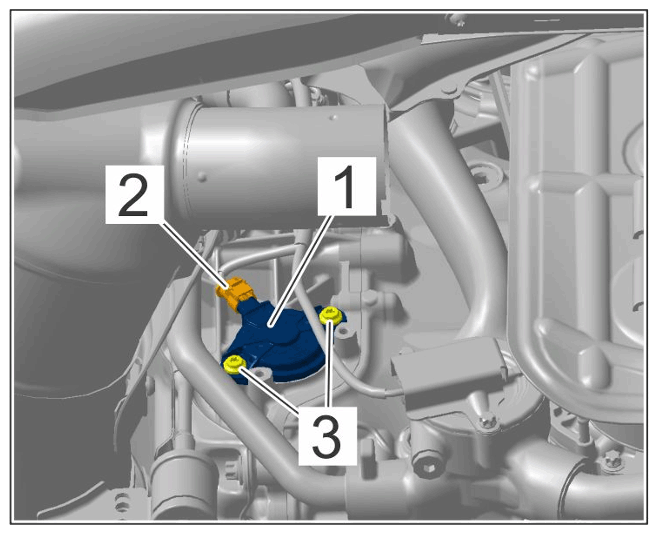

Actuator for camshaft control

Install heat shield -1- on actuator for camshaft control.
Fit and tighten screws -2- .
Tightening torque: > Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

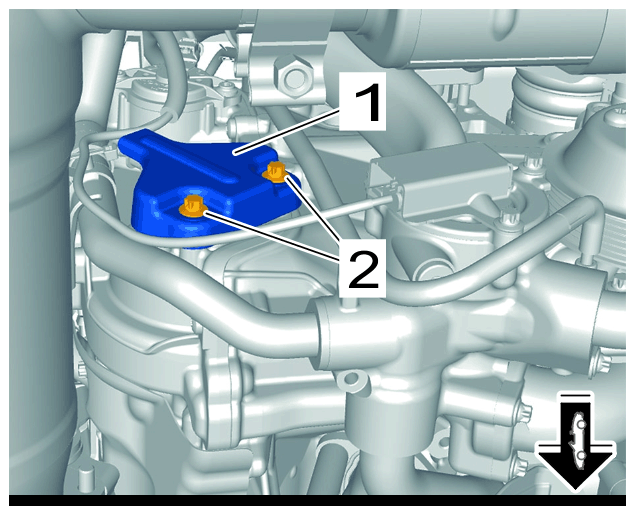

Heat shield on actuator for camshaft control
