Installing Chain Tensioner - Cylinder Bank 4-6

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install chain tensioner -1-  .

Screw in and tighten chain tensioner -1-  .

> Tightening torque 80 Nm (59 ftlb.)

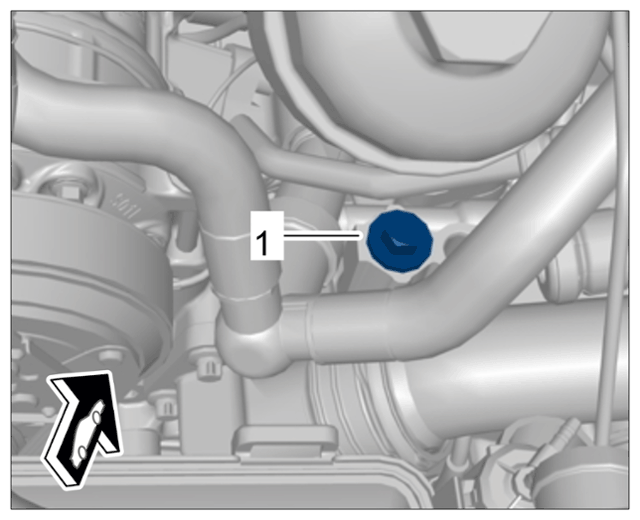

G15488455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner for cylinder bank 4-6
