Subsequent Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

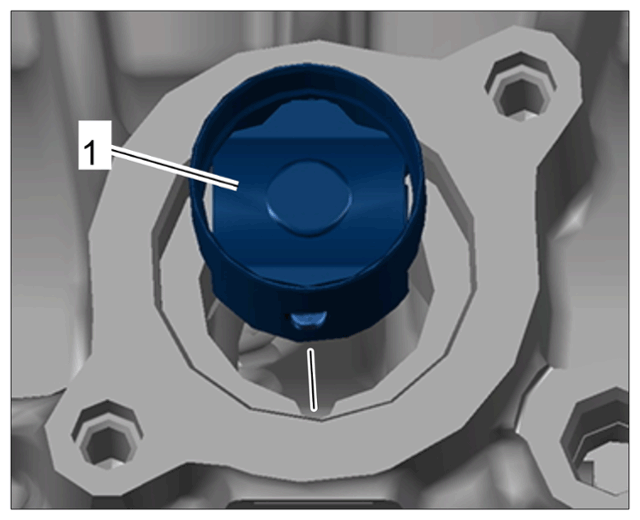

  1. Coat tappets for high-pressure pump -1-  with oil and insert them.
    G15488449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tappets for high-pressure pump

  2. Install high-pressure pump.

    246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP

  3. Fit spark plugs.

    >  WM, 287020 REMOVING AND INSTALLING SPARK PLUGS\

  4. Install cylinder head cover.

    158219 REMOVING AND INSTALLING CYLINDER HEAD COVER
