Removing Oil Separator

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip wiring harness for starter and generator.
  2. Remove oil separator -1-  .

    Release and pull off vent line -2-  by pressing the locking ring.

    Unscrew M6 screws -3-  .

    Pull oil separator out of the oil-water heat exchanger bracket.

    Cover the take-up bores.

    Replace O-rings.

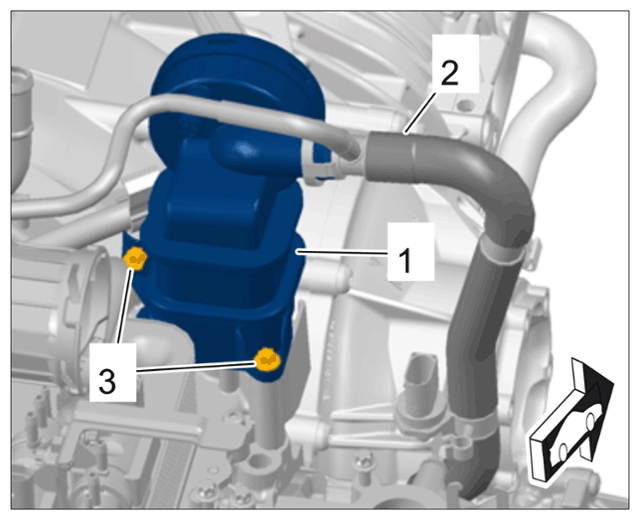

    G15488161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil separator on bracket

  3. Remove all traces of oil and clean the take-up bores.
