Removing Positive Crankcase Ventilation Hose

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove positive crankcase ventilation hose -1-  .

    Release and disconnect connection -2-  on the pressure pipe.

    Release and disconnect connection -3-  on the oil separator.

    Release and disconnect connection -4-  on the center intake-air distributor.

    Feed out positive crankcase ventilation hose -1-  .

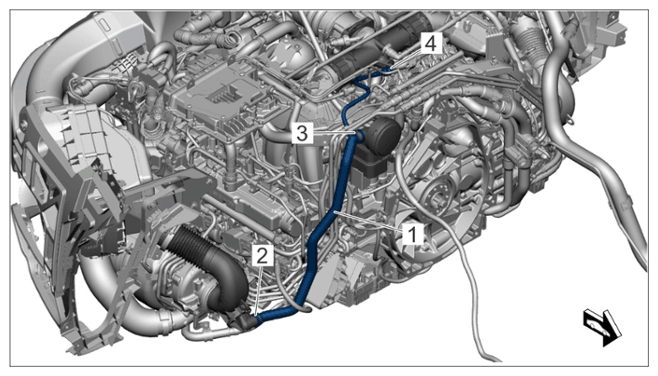

    G15488158Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front positive crankcase ventilation hose
