Removing Control Unit For Active Drivetrain Mounts
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Remove covers laterally.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

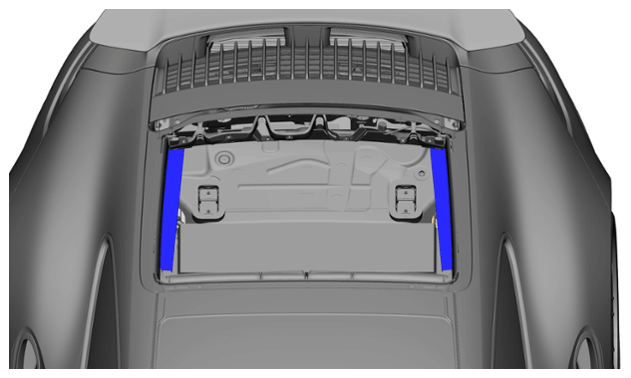

Covers at the sides
- Remove front cover.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

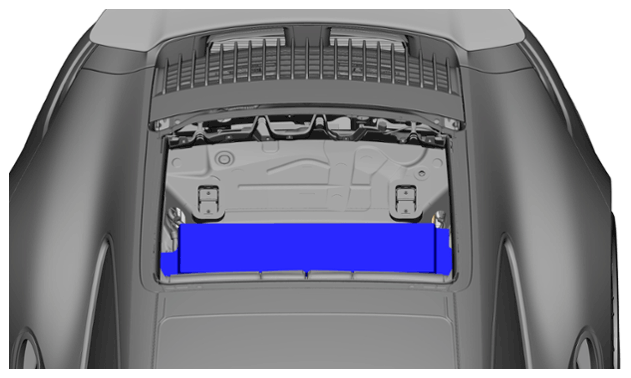

Front cover
- Removing control unit for active drivetrain mounts.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

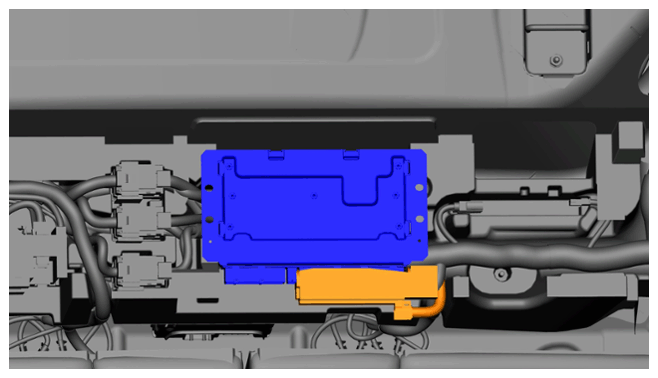

Control unit for active unit mount
Lift active unit mount control unit until the electric plug connection is accessible.
Release and disconnect electric plug connection.
