Subsequent Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install heat shield -3- on the rear bracket.
Position heat shield and fit and tighten screws -1- and nut -2- .

-1- > Tightening torque 2.5 Nm (1.75 ftlb.)

-2- > Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

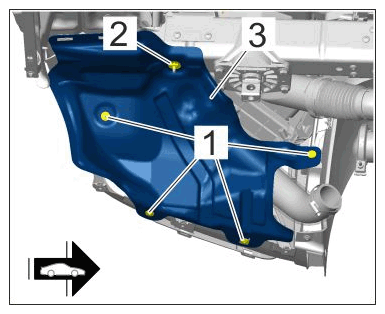

Heat shield on rear bracket
Secure the engine.
> 100109 LOWERING THE ENGINE
449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
