Removing Engine Mounting
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

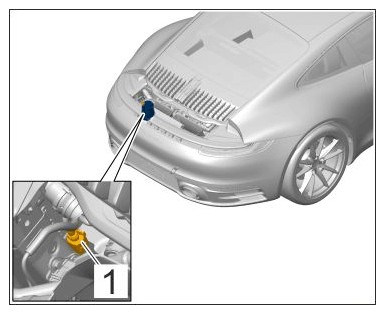

- Only for vehicles with PADM:
Release and disconnect cable plug -1- .
Cable plug for PADM engine mount

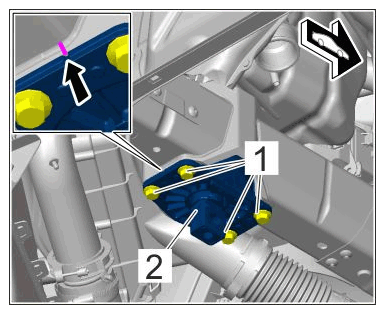

- Remove engine mount -2-
.
Mark the position of the engine mount on both sides -arrow- of the bodyshell.
Unscrew screws -1- and remove engine mount -2- .
Engine mount
