Preliminary Work
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Lower the engine by 90 to 100 mm.
> 100109 LOWERING THE ENGINE
- Remove heat shield -3-
on the rear bracket.
Unscrew screws -1-
and nut -2-
and remove heat shield -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

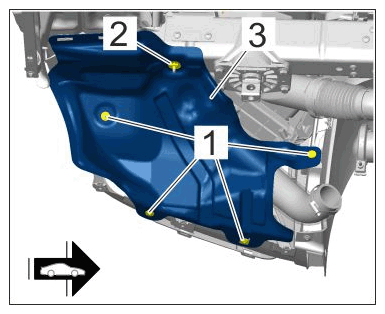

Heat shield on rear bracket (left side)
