Installing Engine Mounting

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

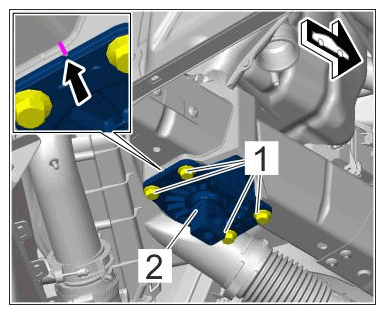

Install engine mount -2- .
Position engine mount -2- and fit screws -1- by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount

Tighten engine mount.

> Initial tightening 16 Nm (12 ftlb.)

> Final tightening + 30°

Information

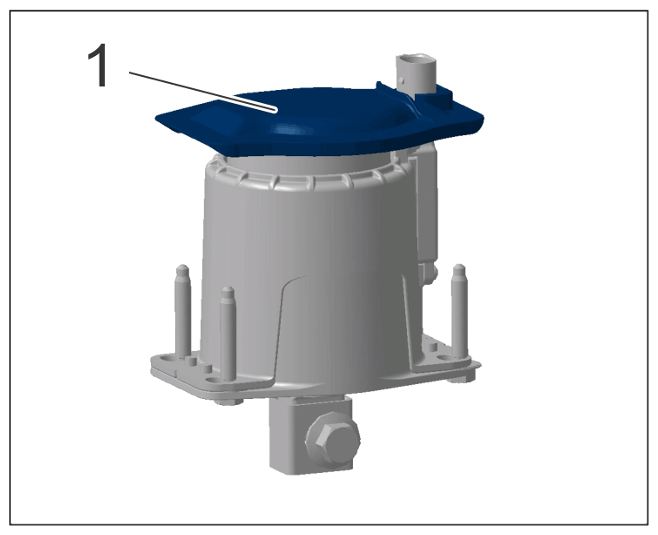

If caps -1- are not yet fitted, fit new caps on both engine mounts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on engine mount

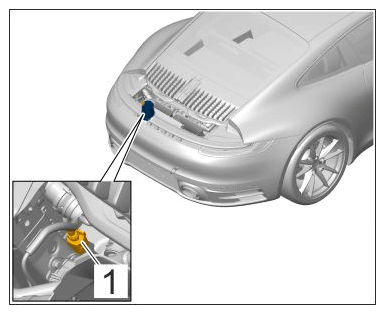

Only for vehicles with PADM:
Plug in cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug for PADM engine mount
