Disassembling Engine

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Dirt and contamination
  • Risk of damage to units or components

    → Protect components from dirt and contamination.

    → Clean or replace dirty components.

  1. Turn the engine on the assembly support so that the oil pan is at the top.
  2. Remove oil pan.

    175019 REMOVING AND INSTALLING OIL PAN

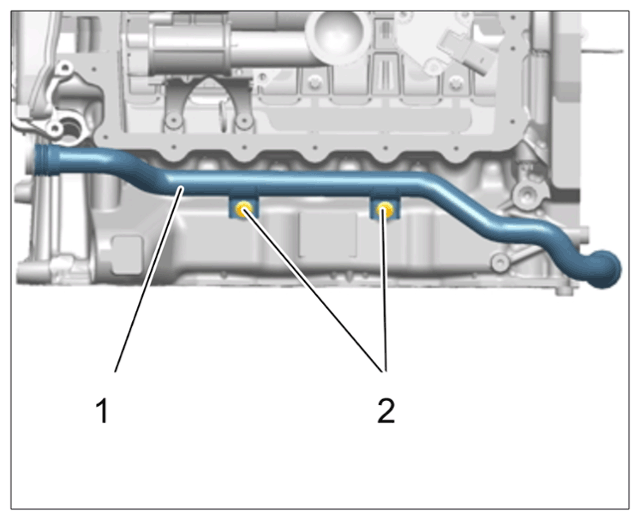

  3. Unscrew screws -2-  and remove coolant pipe -1-  .
    G15488120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe for coolant pump

  4. Remove piston.

    131020 REMOVING AND INSTALLING PISTONS

  5. Remove crankshaft from the crankcase.
  6. Disassemble crankshaft.

    134837 DISASSEMBLING AND ASSEMBLING CRANKSHAFT
