Marking Engine Number

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not use steel stamping numbers to mark the engine number on direct fuel injection engines.
Due to the material composition, the engine number must be engraved using the specified tool.

> VAS 221 003 - Marker pen-1- to compressed air supply.
Turn the adjusting ring -Arrows- to open or close the compressed air supply.

First test the tool on a piece of waste material.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

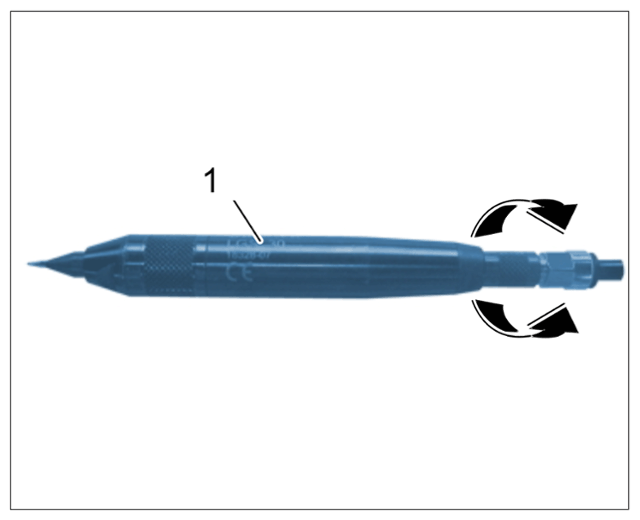

Marking pen no. 197
Use the marking pen to engrave the engine number into the crankcase.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

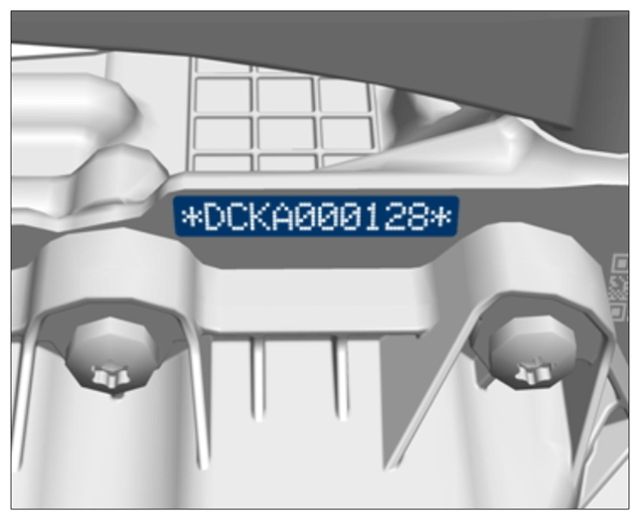

Example of engine number

To provide a clear marking, use a 0.5 (5 mm) template!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

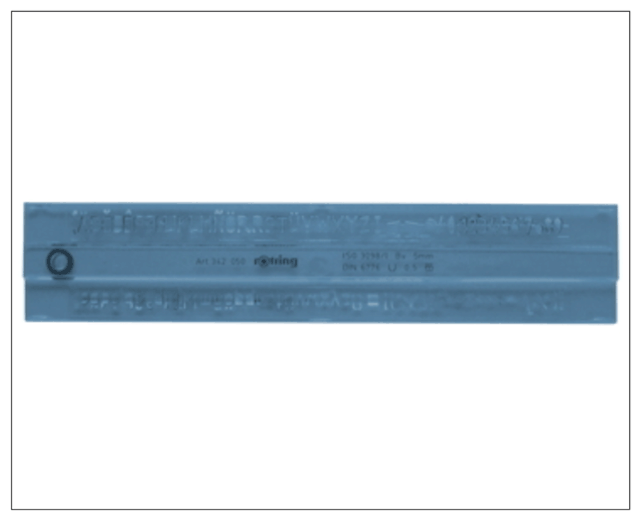

Example of a template
