Installing Engine

Information

• If the engine is to be replaced, always read off the IMA values on the new fuel injectors before installing the new engine and enter them in the PIWIS Tester.
• Tester path: Maintenance/repairs → menu item Injectors

The IMA value can be read off the injector at the positions -4- shown in the illustration.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

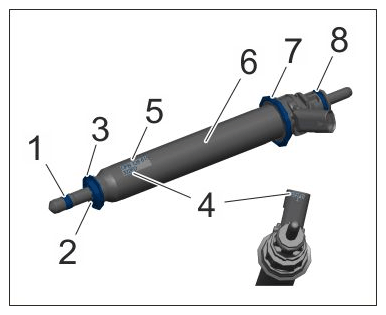

Injector valve with individual parts and marking

Refer to WM, 303019 REMOVING AND INSTALLING CLUTCH SLAVE CYLINDER

Remove tie-wrap.

Fit and tighten M8 screws -2-  .

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

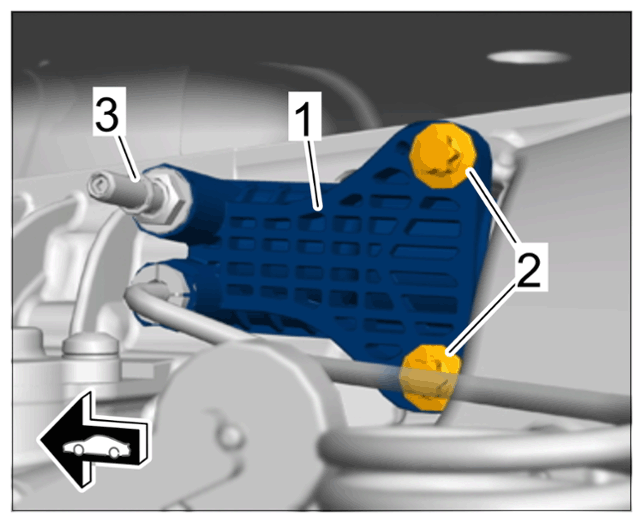

Clutch slave cylinder

Fit transmission support -5-  with collar nuts -4-  .

Fit transmission bracket -3-  on transmission mount.

Fit screws -1-  and collar nuts -2 and 4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

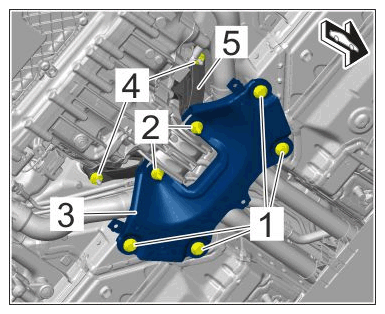

Transmission support and transmission bracket (view on PDK)

Fit screws on the engine brackets on both sides in the grommets on carrier rear -Arrow-  and tighten them.

> Initial tightening 70 Nm (52 ftlb.)  → > Final tightening + 45°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounts

Tighten screws -1-  and collar nuts -2 and 4-  .

Screws -1-  : > Initial tightening 30 Nm (22.1 ftlb.)  → > Torque angle 60°

Nuts -2-  : > Initial tightening 30 Nm (22.1 ftlb.)  → > Torque angle 60°

Nuts on transmission support -4-  : > Initial tightening 30 Nm (22.1 ftlb.)  → > Torque angle 60°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission support and transmission bracket (view on PDK)

Secure cable -4-  with the retaining clips.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

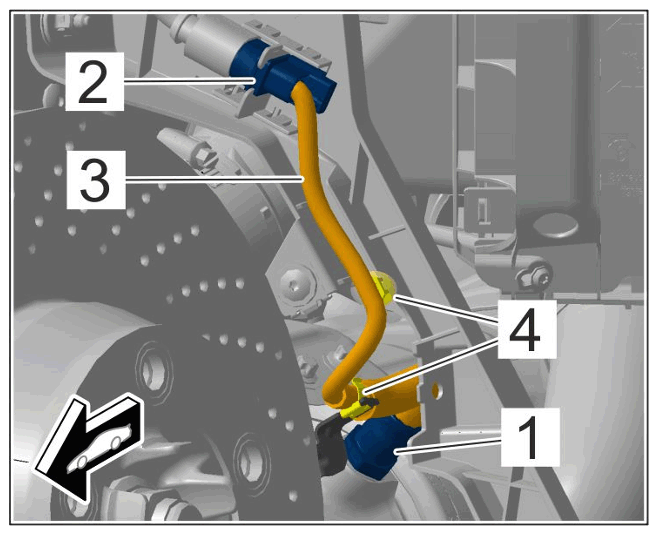

Oxygen sensor upstream of catalytic converter, cylinder 1-3

Tighten new V-band clamp -2-  on the intake pipe.

> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Right side only:  Connect vent line -3-  .

Tighten screw-type clamp -5-  on the molded hose.

> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

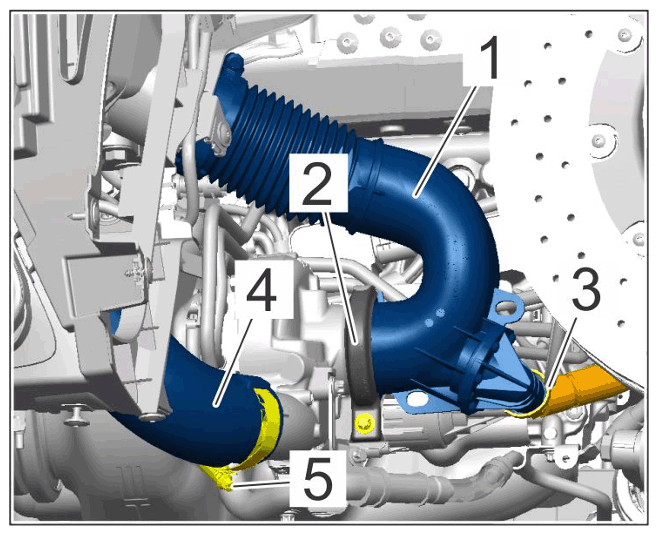

Intake pipe and lower molded hose on turbocharger

For all-wheel-drive vehicles:

Refer to WM, 390219 REMOVING AND INSTALLING CARDAN SHAFT

Cardan flange on PDK:  > Initial tightening 20 Nm (15 ftlb.)  → > Torque angle 45 Grad

Cardan flange on manual transmission:  > Tightening torque 35 Nm (26 ftlb.)

Work for Porsche double-clutch transmission (PDK):

Connect and lock three cable plugs -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

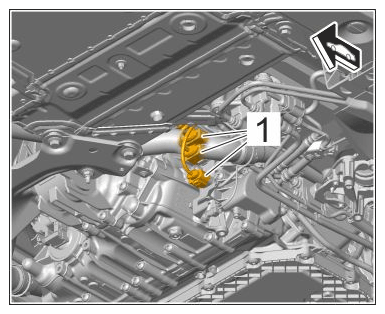

Cable plugs on double-clutch transmission

Work for manual transmission:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

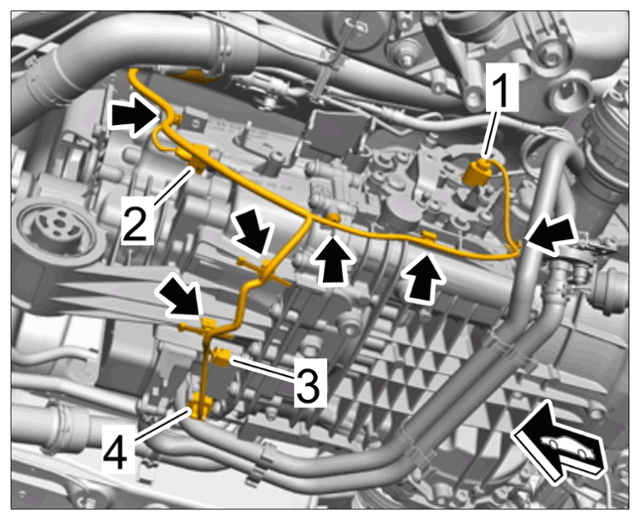

Wiring harness for manual transmission

Refer to WM, 341220 REMOVING AND INSTALLING SHIFT AND SELECTOR CABLES

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

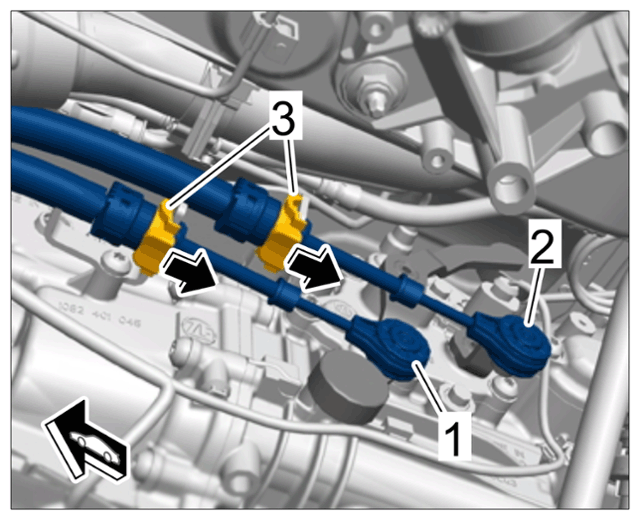

Shift and selector cable on transmission

All vehicles:

Insert cable shoe -1-  and fit and tighten collar nut -2-  . Close flap.

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

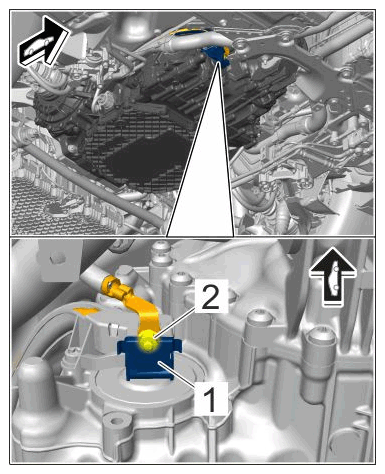

Connection point for B+ line (view on PDK)

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

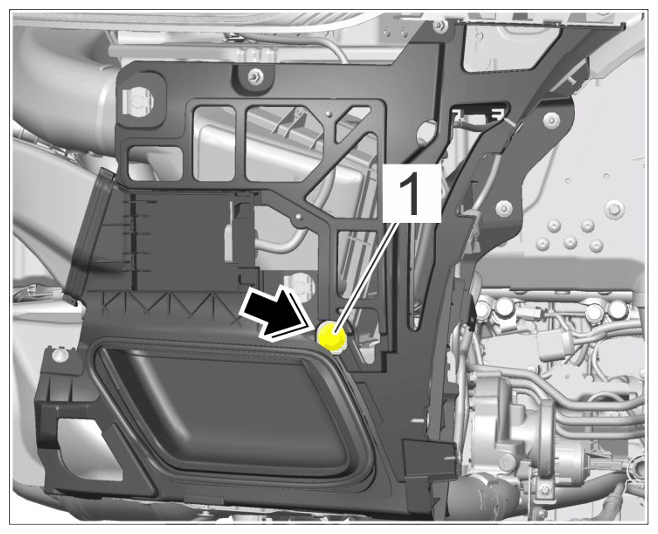

Engine ground strap to body

Information

• Always observe specifications relating to chassis components.

  4X00IN TIGHTENING TORQUES FOR REAR AXLE

420619 REMOVING AND INSTALLING REAR AXLE CARRIER - on "Installing"

Fit and tighten new screws.

M12 x 95 screw -3-  : > Initial tightening 70 Nm (51.6 ftlb.)  → > Final tightening + 180°

M12 x 110 screw -2-  : > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

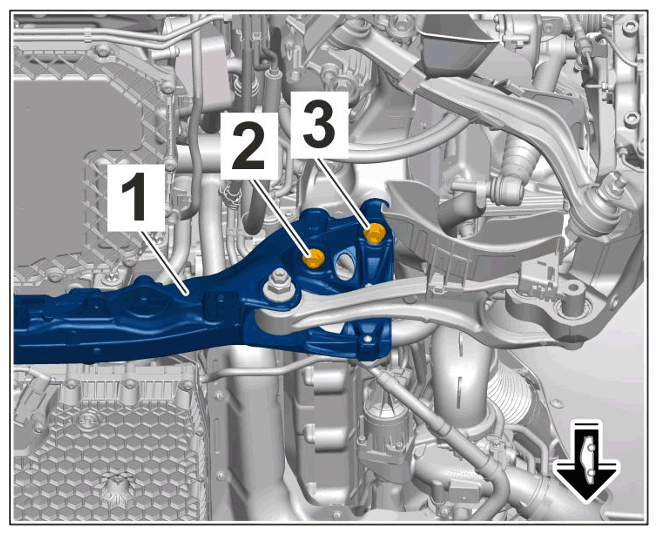

Rear axle carrier mounting

429019 REMOVING AND INSTALLING STABILIZER - on "Installing"

Fit and tighten new collar nut -2-  .

Conventional connecting link:  > Initial tightening 40 Nm (29.5 ftlb.)  → > Final tightening + 30°

PDCC connecting link:  > Initial tightening 50 Nm (36.9 ftlb.)  → > Final tightening angle + 50 (37 ftlb.) °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

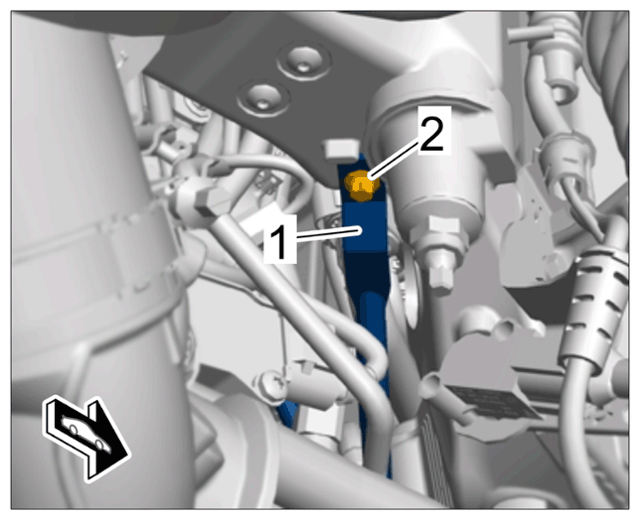

Mounting for connecting link (conventional view)

421119 REMOVING AND INSTALLING LOWER TRAILING ARM - on "Installing"

Fit and tighten screws with collar nuts -2-  .

> Initial tightening 70 Nm (51.6 ftlb.)  → > Final tightening + 180°

Fit and tighten screws with collar nuts -3-  .

> Tightening torque 100 Nm (73.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for trailing arm, lower

Refer to the appropriate service information.

Position strut using new screws -2 and 4-  .

Fit M10 x 45 screw -3-  .

Only for Cabriolet:  Fit M8 x 25 screw -5-  .

Tighten screws.

• M12 x 40 screw -2-  : > Initial tightening 70 Nm (51.6 ftlb.)  → > Final tightening + 90°
• M10 x 45 screw -3-  : > Tightening torque 55 Nm (40.6 ftlb.)
• M12 x 45 screw -4-:  > Initial tightening 30 Nm (22.1 ftlb.)  → > Final tightening + 90°
• M8 x 25 screw -5-  : > Tightening torque 30 Nm (22.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

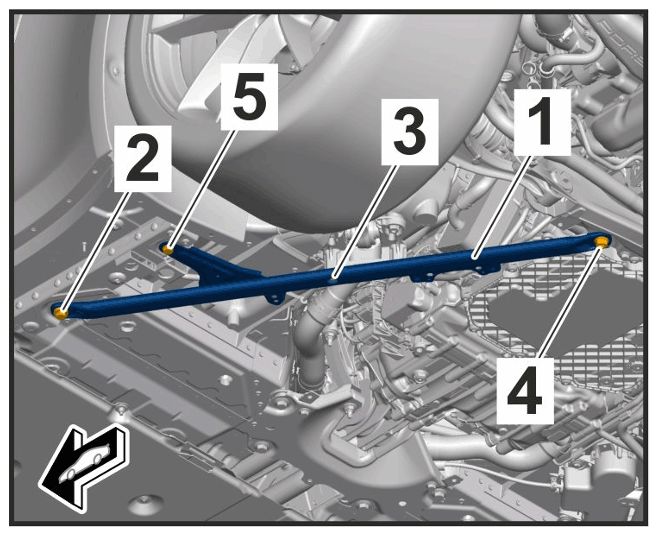

Mounting for strut (view on Cabriolet)

Information

• Replace O-rings on the cooling system.
• Clean plug connection and coolant hoses before assembly.
• Remove stoppers before fitting the coolant lines and hoses.

Lightly grease O-rings.

Check that the coolant hoses are fitted securely.

267219 REMOVING AND INSTALLING EXHAUST TEMPERATURE SENSOR - on "Installing"

Check that the line is fitted securely.

Clip in lines in holder -1-  and close the retaining clip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

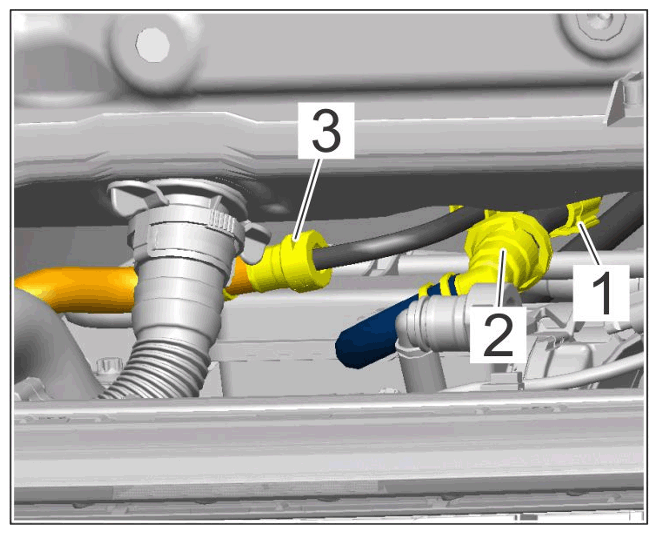

Tank vent line connection in engine compartment
