Additional Work For Vehicles With Pdcc

Information

• Only for vehicles with PDCC: After installing a replacement engine, pressure must be applied to the PDCC pump via the reservoir.

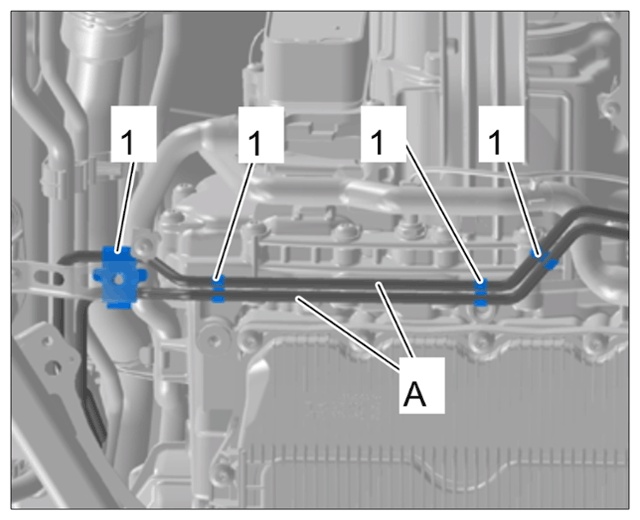

1. Route PDCC lines -LHD vehicle -  on the underbody and clip them into the brackets -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket for PDCC lines

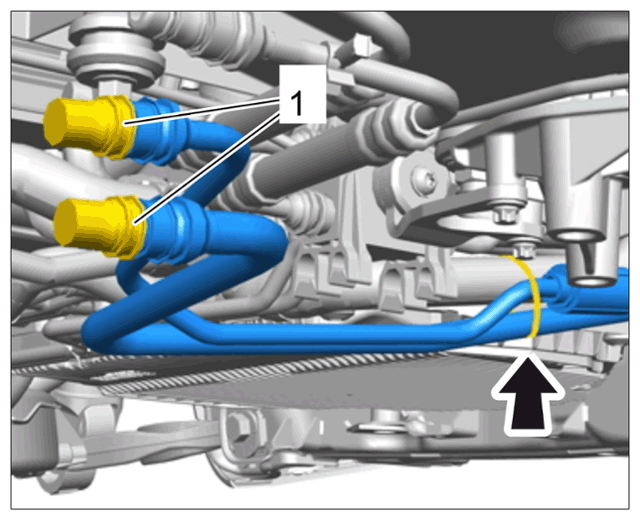

2. Remove all stoppers from the hydraulic lines -1-  and loosen tie-wrap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Example of hydraulic lines blocked and secured

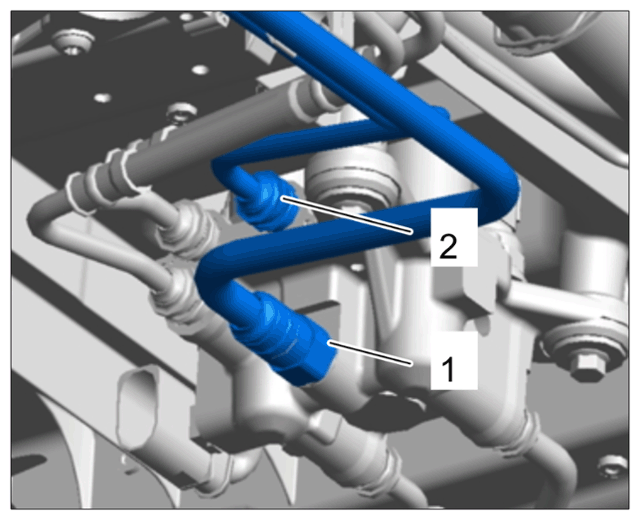

3. Connect plug-in couplings -1 and 2-  for the steering hydraulic system on the valve block.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic lines on valve block

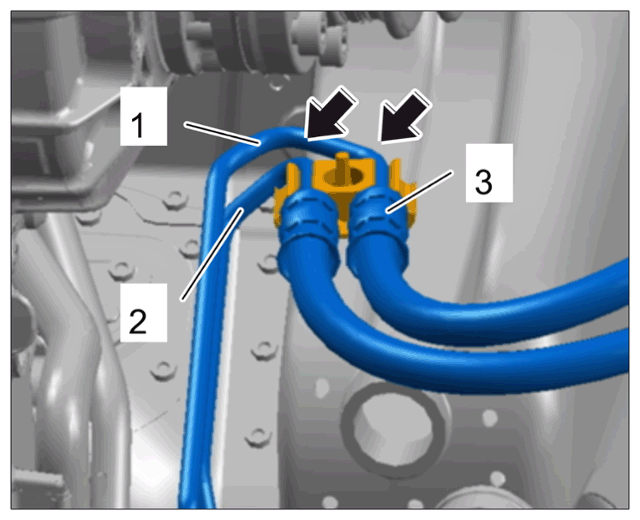

4. Clip in hydraulic lines -1 and 2 -  at the right -Arrows-  .

   Fit fixing clip -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip for hydraulic lines at the right

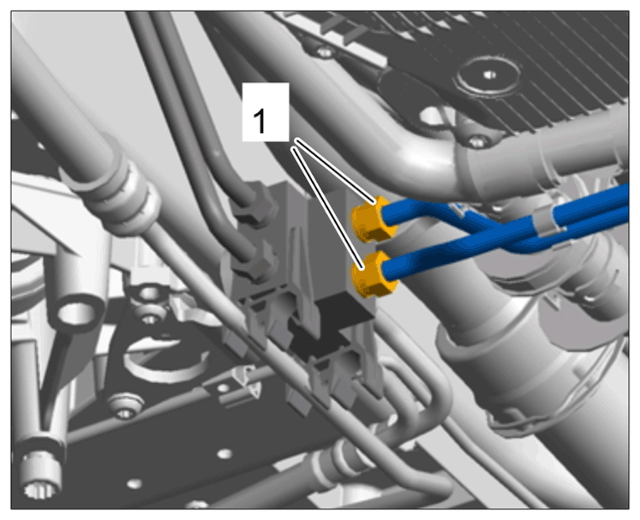

5. Secure hydraulic lines on the distributor with union nuts -1-  .

   > Tightening torque 28 Nm (21 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic lines on the distributor

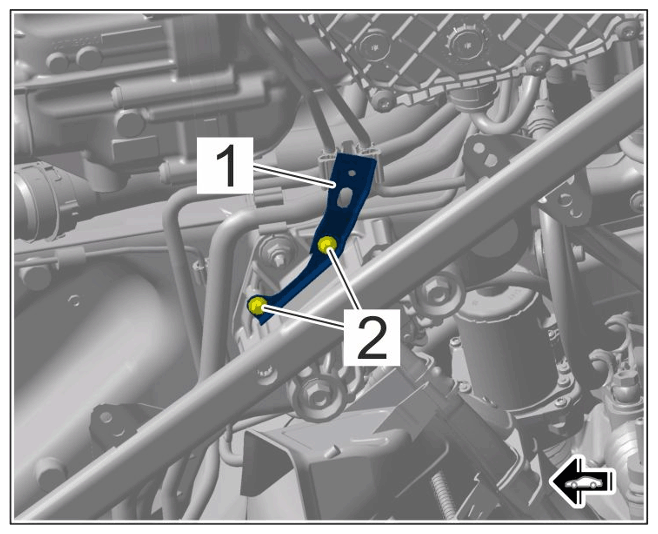

6. Install holder -1-  for hydraulic lines at the right.

   Fit and tighten screws -2-  .

   > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for hydraulic line holder

7. Fill in Pentosin at the hydraulic reservoir, check the fluid level and top up if necessary.

   Refer to the appropriate service information.

8. Apply pressure to the pump via the reservoir.

   Bleed the system.

   Refer to the appropriate service information.

9. Visually inspect line connections for leaks.
