Turn the fuel pump -1- anti-clockwise -arrow A- out of the latch (bayonet lock) -2- .
Carefully remove the fuel pump -1- from the fuel tank by pulling it up through the opening on the tank -arrow B- .

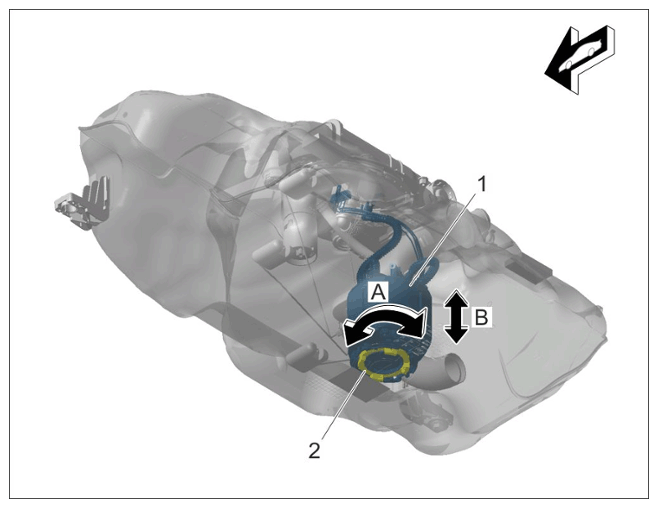

Fuel pump in fuel tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
