Installing Fuel Pump

1. Install fuel pump -1-  .

   Carefully guide the fuel pump -1-  down into the fuel tank via the opening on the tank -arrow B-  .

   Position the fuel pump -1-  carefully into the latch (bayonet lock) -2-  in the fuel tank -arrow B-  .

   Lock the fuel pump -1-  by turning it clockwise -arrow A-  .

   The installation position must always be observed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

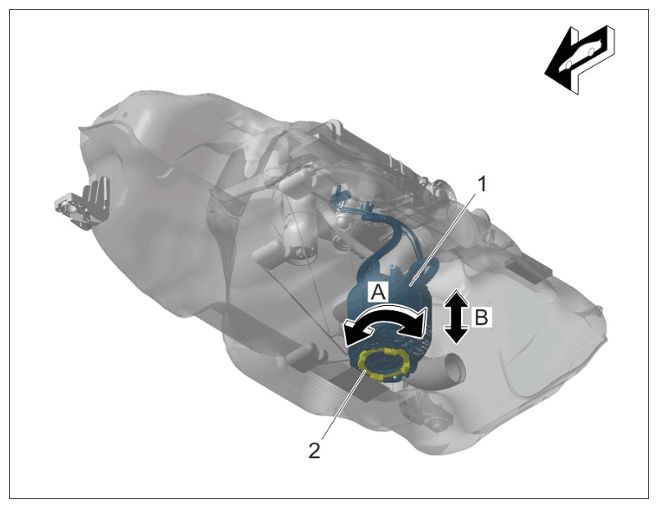

Fuel pump in fuel tank
