Installing Leakage Diagnosis Module

Position leakage diagnosis module -2- on the carbon canister and secure with screws -1- .
> Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

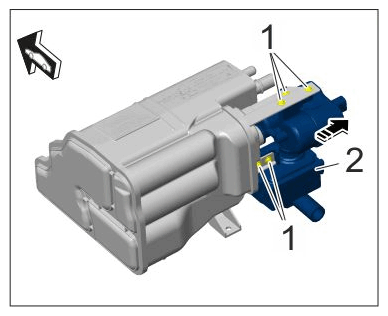

Leakage diagnosis unit
