Installing Fuel Supply Line (Rear Section)

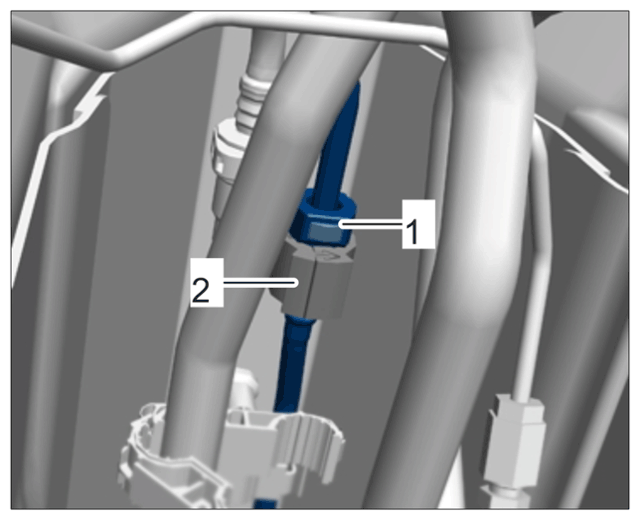

  1. Connect the fuel line at the connection point -1-  .

    Check that the fuel line is fitted securely by pulling on it. Make sure that the spacer ring -2- is positioned correctly!

    G15503421Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel line connection point

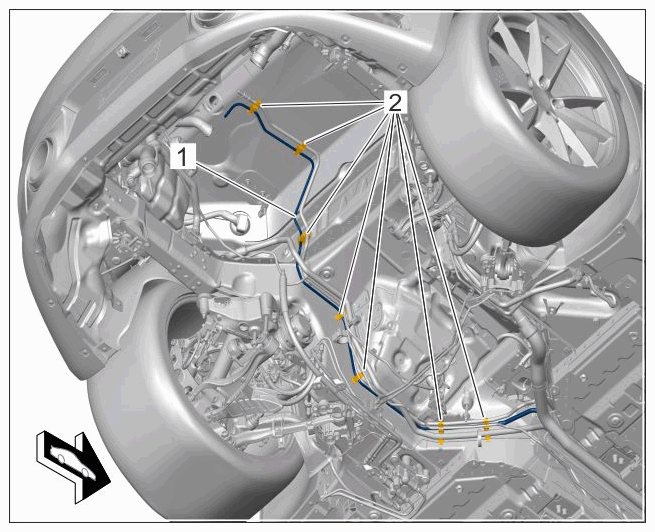

  2. Clip in fuel line -1-  on the holders -2-  .
    G15503422Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel supply line (rear section)
