20 Fuel Supply, Actuator 3.0L (Eng Code MDK.Ca) -- 992 - 911 CARRERA (992)
>>
WM, 203819 Removing And Installing Fuel Supply Line
>>
Installation Position
Installation Position

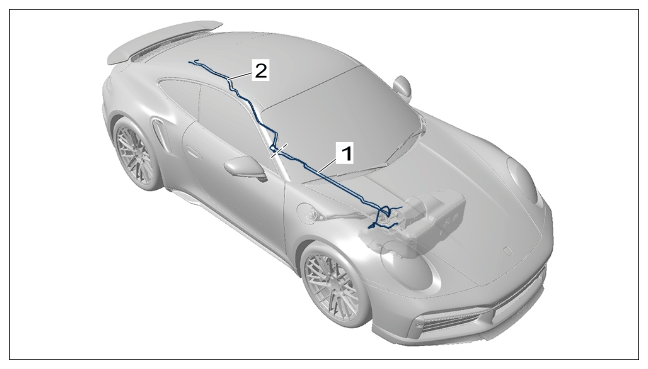

Fig 1: Fuel Supply Line Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Fuel supply line - front section
2
Fuel supply line - rear section
