Technical Values

Location	Description	Type	Basic values	Tolerance 1
Valve block to holder	Screw, M6	Tightening torque	10 Nm (7.5 ftlb.)
Screws securing engine suspension eyelet to crankcase	Item 4 - M6 x 20	Tightening torque	13 Nm (9.5 ftlb.)

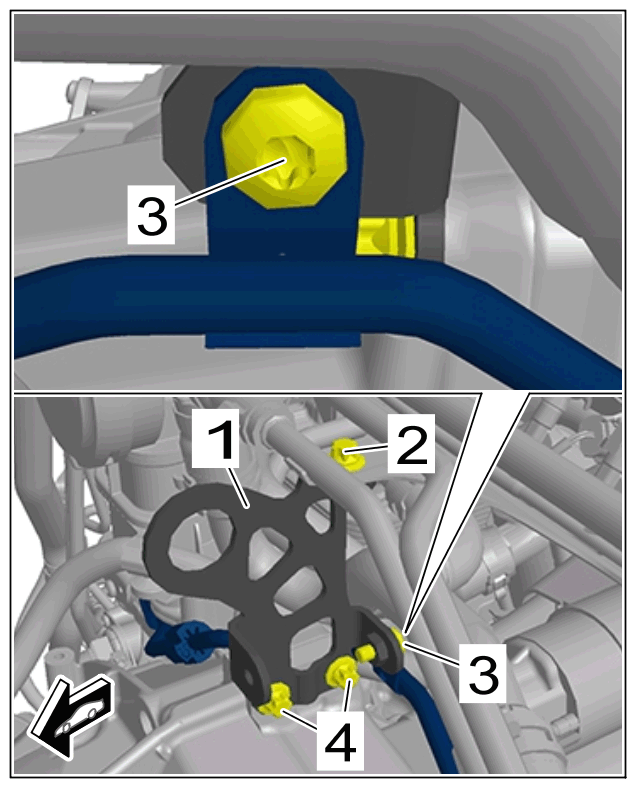

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Engine suspension eyelet
Holder for fuel lines	Screws, M6	Tightening torque	13 Nm (9.5 ftlb.)
Union nuts on fuel lines (a/f 17)	M14 x 1.5 - coat thread and cone with Microgleit DF977S (Part No. 000.043.209.35)	Initial tightening	8 Nm (6 ftlb.)
Union nuts on fuel lines (a/f 17)	M14 x 1.5 - coat thread and cone with Microgleit DF977S (Part No. 000.043.209.35)	Final tightening torque angle	+ 50°	+ 10°
Screw securing low-pressure line to crankcase	Item 3	Tightening torque	32 Nm (24 ftlb.)

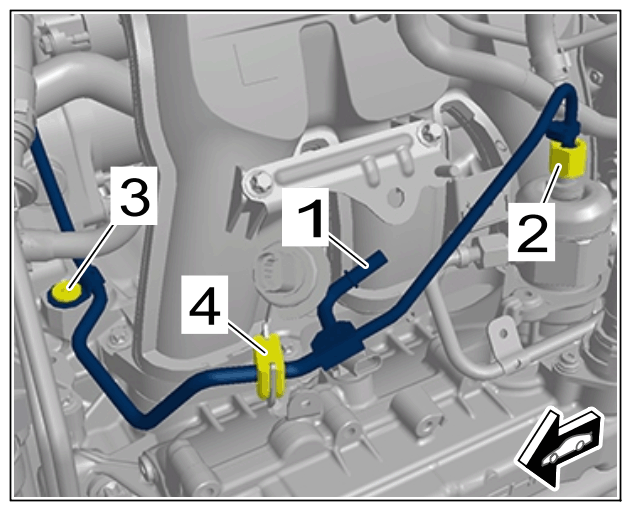

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Low-pressure fuel line (lower section)
