Removing Fuel Line (Low-Pressure Side): Notes

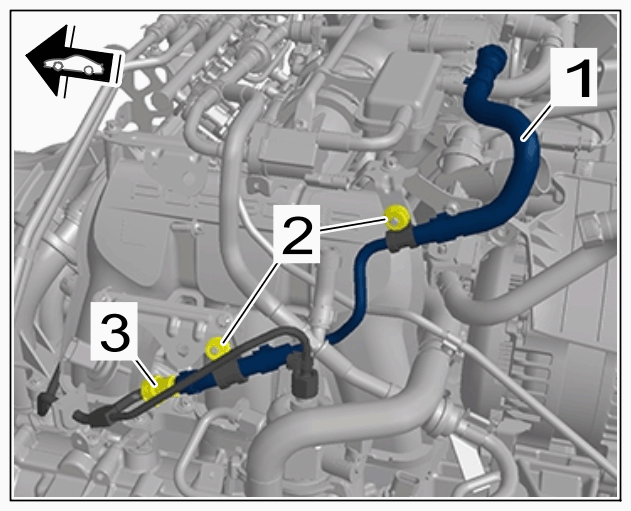

Loosen top section -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line on low-pressure side (top section)

Unscrew nuts -2- and remove holder from bolts.

Release and disconnect quick connector -3- .

Catch escaping fuel and close off line connections using suitable stoppers.

Guide out top section -1- .

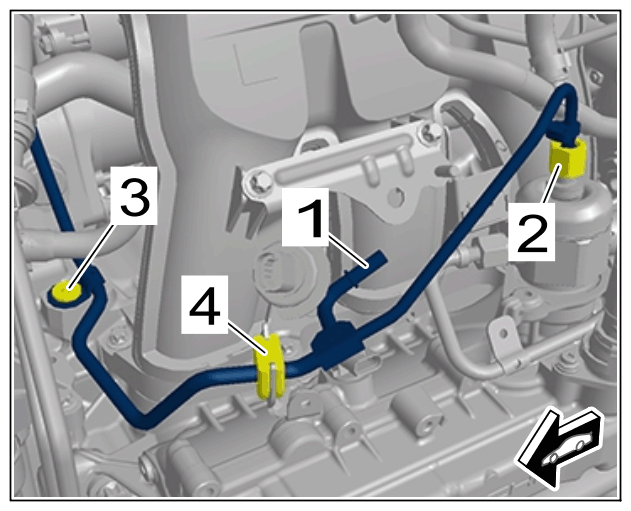

Loosen bottom section -1- on cylinder bank 1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-pressure fuel line (bottom section)

Unscrew union nut -2- .

Unscrew screw on holder -3- .

Unclip holder -4- .

Catch escaping fuel and close off line connections using suitable stoppers.

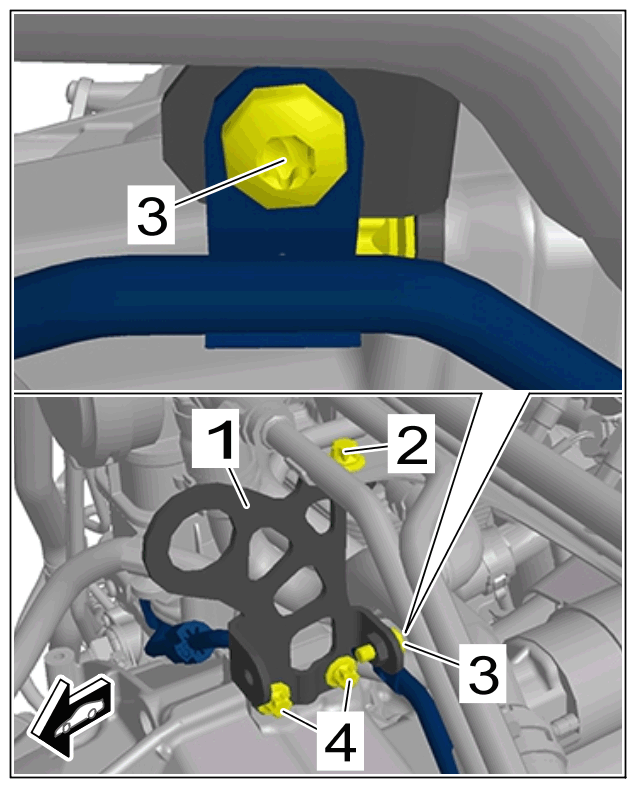

Remove engine suspension eyelet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine suspension eyelet

Unscrew screw -2- .

Unscrew screw -3- .

Unscrew screws -4- .

Remove engine suspension eyelet -1- .

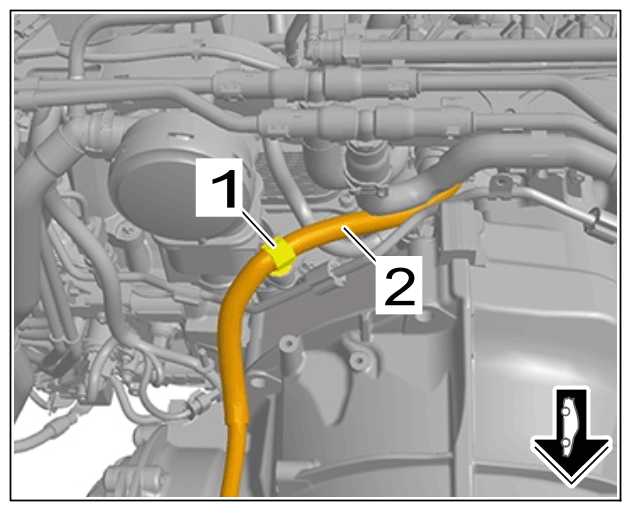

Open clip -1- and move electric line -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

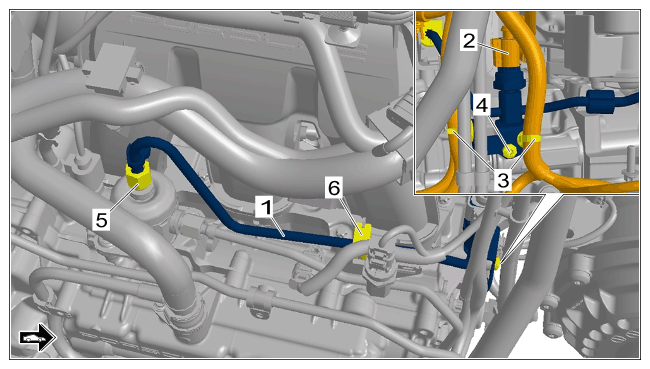

Remove fuel line (low-pressure side) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line (low-pressure side)

Loosen holder for fuel pressure sensor.
1. 5.1.1 Release and disconnect electric plug connection for fuel pressure sensor -2- .
2. 5.1.2 Unclip clips -3- .
3. 5.1.3 Unscrew screw on fuel pressure sensor -4- .
Unscrew union nut -5- .

Unclip holder -6- and guide out fuel line on low-pressure side -1- .

Catch escaping fuel and close off line connections using suitable stoppers.
