Installing Carbon Canister: Notes

1. Install carbon canister -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

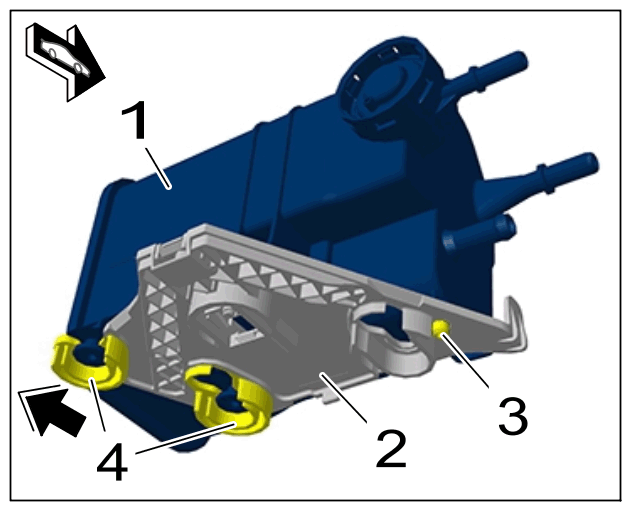

   Carbon canister - view from below

   Clip carbon canister -1-  in the opposite direction to -direction of arrow-  into latches -4-  . When doing so, make sure not to damage the guide pin -3-  .

2. Secure carbon canister -4-  .

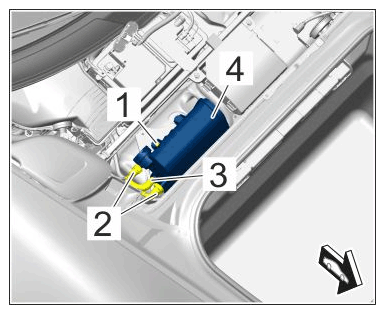

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister

Screw in and tighten screw -1-  .

> Tightening torque 3 Nm (2 ftlb.)

Connect the hose -3-  .

Connect and lock plug-in couplings -2-  .
