Installing Carbon Canister With Leakage Diagnosis Module

1. Install carbon canister -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

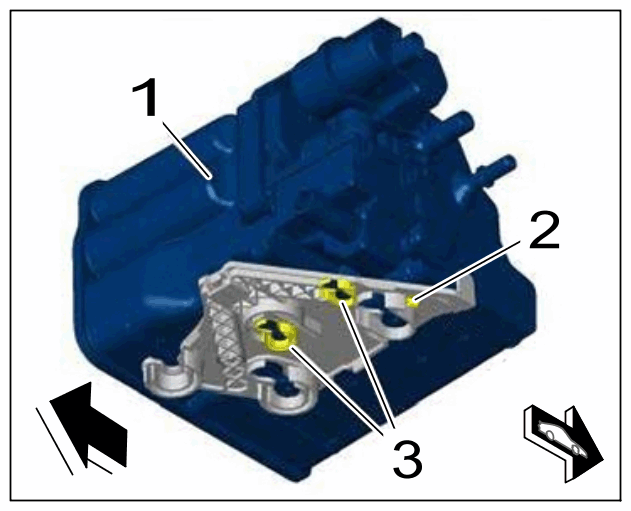

   Carbon canister with leakage diagnosis module - view from below

   Clip carbon canister -1-  in the opposite direction to -direction of arrow-  into latches -3-  . When doing so, make sure not to damage the guide pin -2-  .

2. Secure carbon canister -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

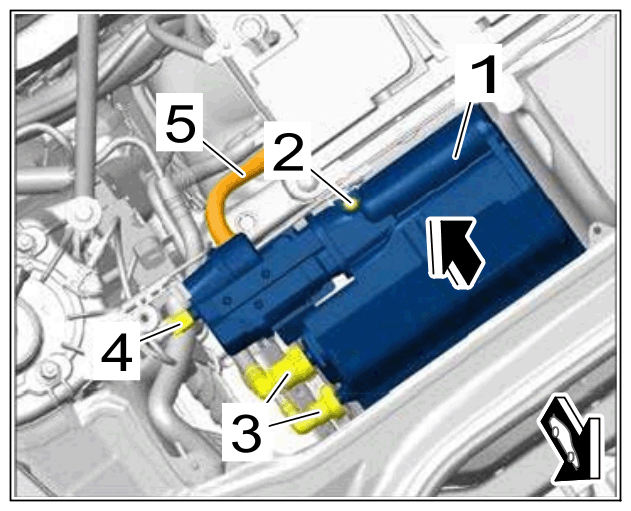

Carbon canister with leakage diagnosis module

Screw in and tighten screw -2-  .

> Tightening torque 3 Nm (2 ftlb.)

Connect and lock plug-in couplings -3-  .

Connect and lock electric plug connection -4-  .

Connect the hose -5-  .
