Removing Tank Vent

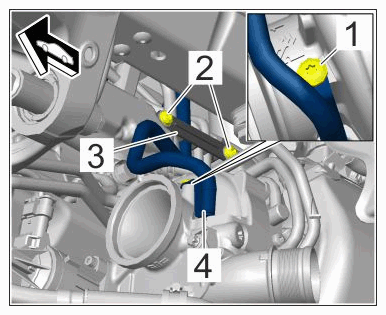

1. Disconnect tank vent line -4-  on the turbocharger.

   Unscrew screws -1 and 2-  and unclip line bracket -3-  .

   Disconnect tank vent line -4-  from turbocharger.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tank vent line, bottom

   Information

   Shown with engine removed for greater clarity.

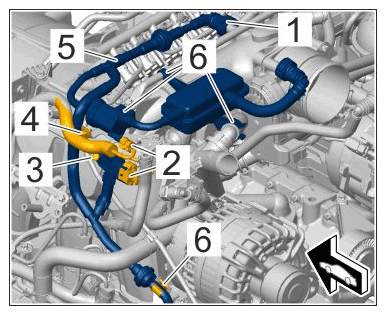

2. Remove tank vent valve.

   Release and disconnect quick connector -1-  .

   Release and disconnect cable plug -2-  .

   Unscrew screw -3-  .

   Unclip wire harness -4-  .

   Unclip tank vent valve with tank vent lines -5-  at the fastening points -6-  and carefully guide out of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, top
