Installing Tank Vent
Information
Shown with engine removed for greater clarity.
Information
Shown with engine removed for greater clarity.

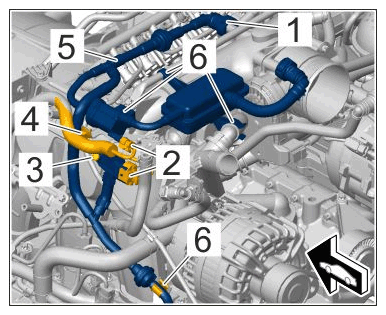

- Install tank vent valve.
Carefully guide tank vent valve with tank vent lines -5- into the engine compartment and clip in at the fastening points -6- .
Clip in wire harness -4- .
Fit and tighten screw -3- .
> Tightening torque 10 Nm (7.5 ftlb.)
Plug in cable plug -2- .
Connect quick connector -1- .
Tank vent line, top

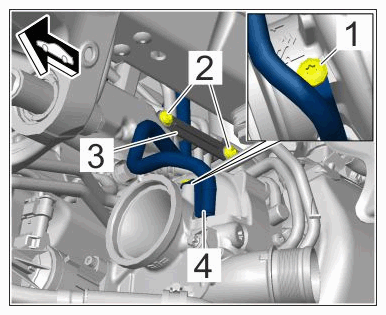

- Fasten tank vent line on the turbocharger.
Replace O-rings on the tank vent line and insert tank vent line -4- into the turbocharger.
Clip in line bracket -3- , fit screws -1 and 2- and tighten them.
-1- > Tightening torque 10 Nm (7.5 ftlb.)
-2- > Tightening torque 10 Nm (7.5 ftlb.)
Tank vent line, bottom
