Subsequent Work
- Install front-axle carrier.
- All-wheel drive vehicles only:
Install front-axle final drive.
- Install filler flap.
- Install front part of front wheel housing liner at the left and right.
Refer to the appropriate service information.

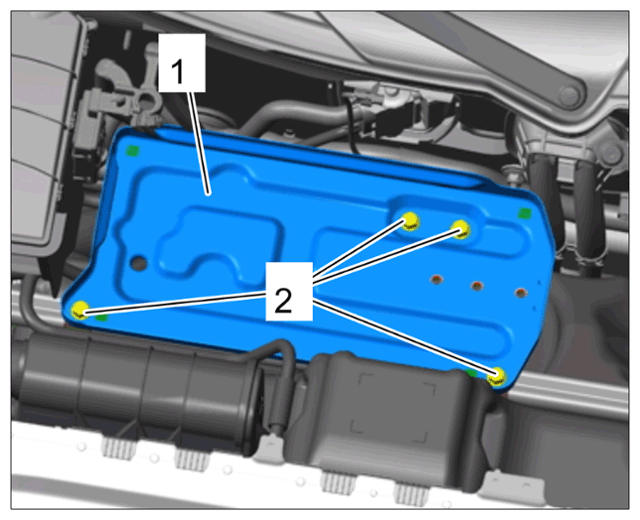

- Install battery console -1-
.
Plug in electric plug connection on fuel pump control unit at the underside of the battery console -1- and check that it is seated securely.
Tighten screws -2- . Tightening torque 23 Nm (17 ftlb.)
Removing and installing battery console
- Install carbon canister.
- Install air inlet housing.
- Install the battery.
270619 REMOVING AND INSTALLING BATTERY
WARNING: Caustic fluids- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Danger of chemical burns
- Fill in coolant.
- Bleed the cooling system.
190107 BLEEDING THE COOLING SYSTEM
WARNING: Flammable or explosive materials- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
- Danger of fire or explosion
- Fill in fuel.
- Remove protective covers from the vehicle.
