Installing Fuel Tank
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Danger of injury and material damage due to risk of explosion
→ If the fuel tank has been emptied or replaced, it must be filled with fuel immediately after carrying out repairs.
Information
Get another person to help you to remove and install the fuel tank.
- Install fuel tank.

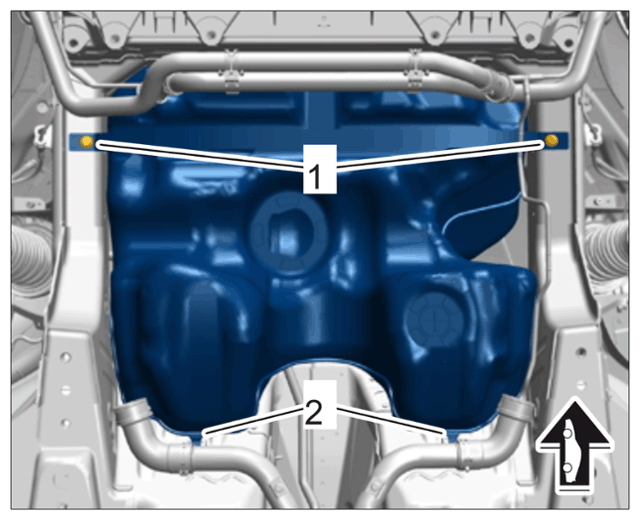

Place the fuel tank in installation position with the help of another person.
Engage clips -2- in the body.
Fit and tighten two screws (M8 x 40) -1- .
Fuel tank mount
Information
- Check O-rings on the plug-in couplings and replace them if necessary.
- Clean plug connection and coolant hoses before assembly.
- Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
- Remove stoppers before fitting the coolant lines and hoses.
- Install coolant pipe at the left and right.
Fit spring clamps and connect coolant pipes.
Clip in vent line.
- Tighten screws on the holders.

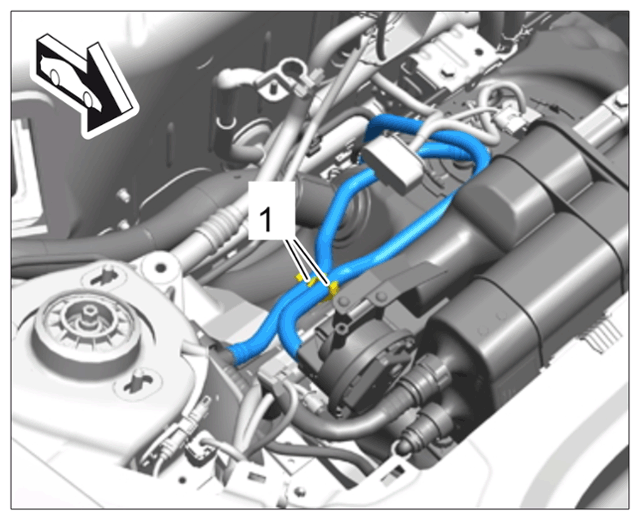

- Clip lines into the clip -1-
on the fuel tank.
Clipping in lines

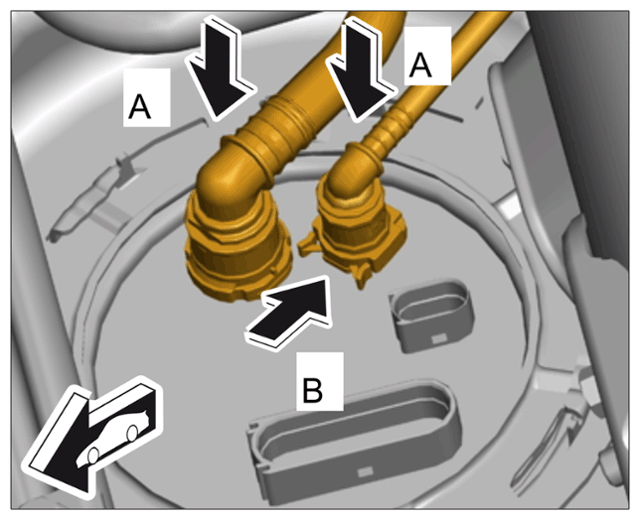

- Connect fuel and vent lines -A-
and check that they are fitted securely.
Lock fuel line -B- (if fitted).
Connecting lines

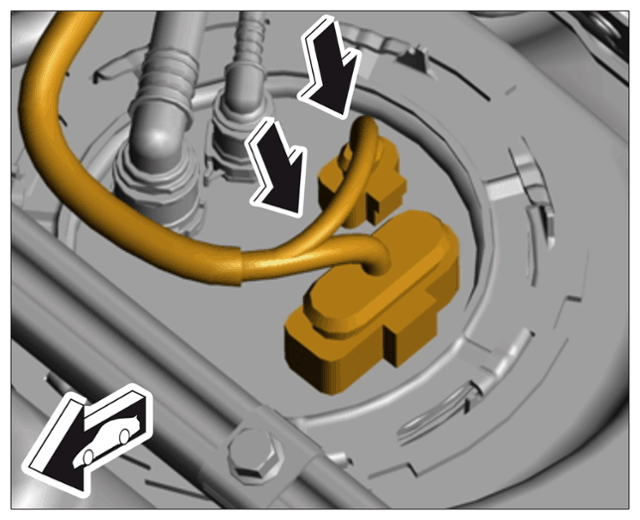

- Connect cable plugs -arrow-
and check that they are fitted securely.
Connecting plug connections
- Secure the filler neck.
Position clamp on the flange on the fuel tank.
Push the filler neck onto the flange on the fuel tank.

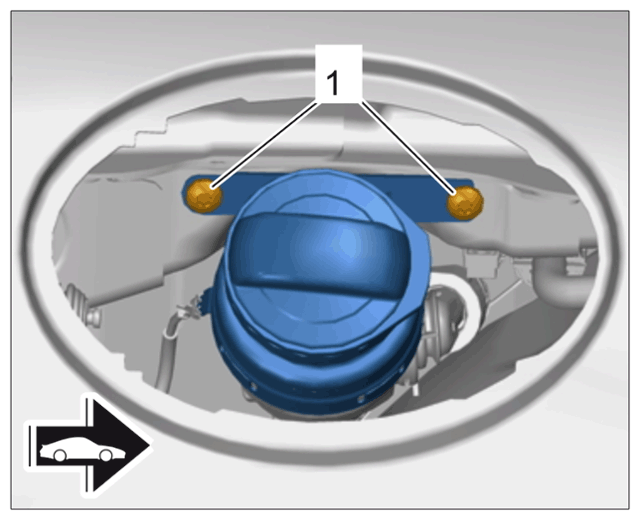

Tighten internal Torx M6 screws -1- for the filler neck.
Filler neck mounting

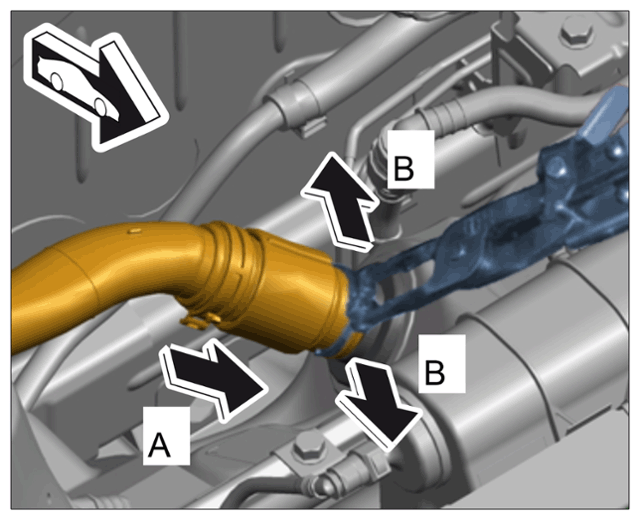

Press filler neck onto the flange -A- , position the clamp and secure the filler neck with the clamp -B- .
Installing filler neck
