Removing Filler Neck

Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

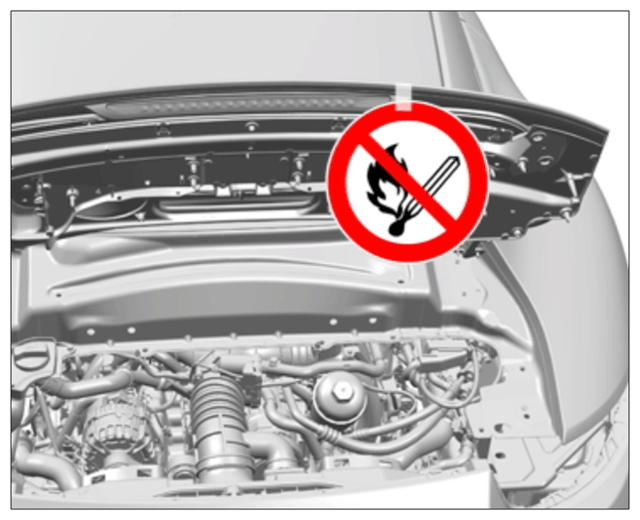

1. Place a warning sign in a clearly visible position in the work area or on the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Example of a warning sign

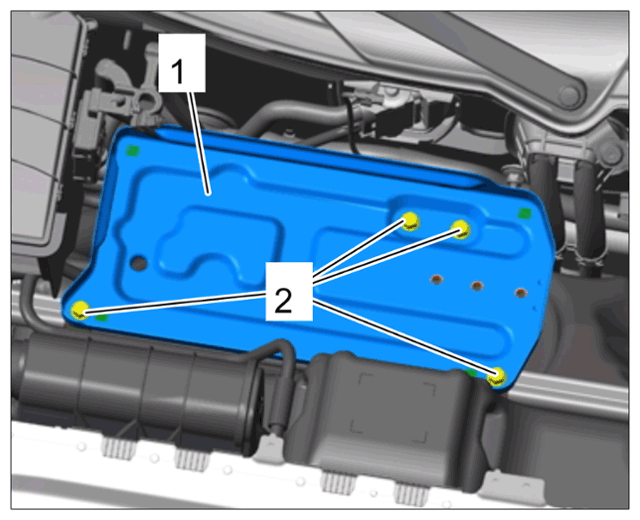

2. Unscrew and remove fastening screws -2-  on the battery bracket -1-  .

   Information

   Make sure not to damage the electric line.

3. Carefully lift the battery bracket -1-  and turn it around until the electric plug connection is accessible.
4. Disconnect electric plug connection on the fuel pump control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery bracket

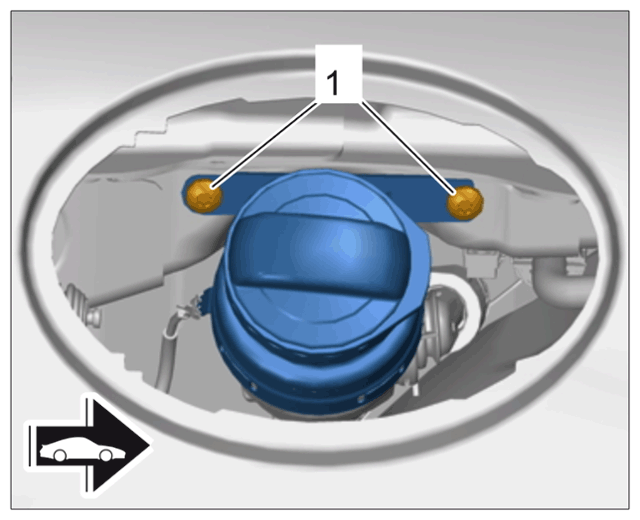

5. Unscrew and remove fastening screws -1-  for the filler neck.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filler neck mounting

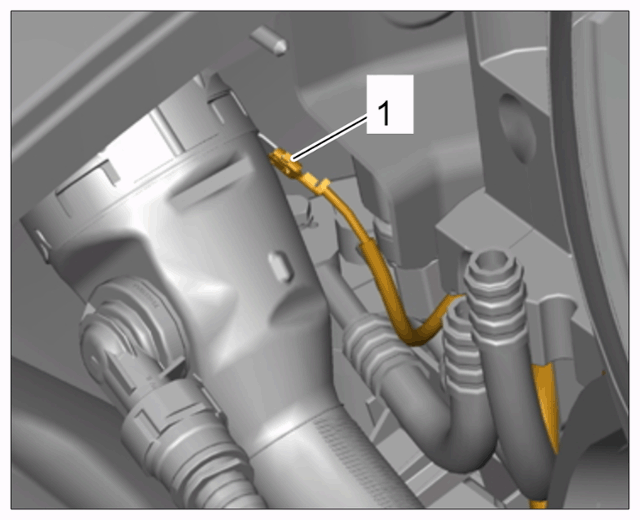

6. Disconnect ground line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground line at filler neck

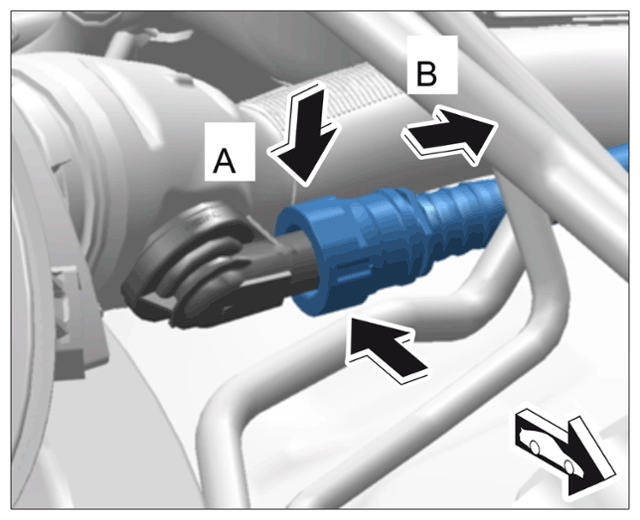

7. Release tank vent line at the filler neck -arrows A-  and pull it off -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tank vent line

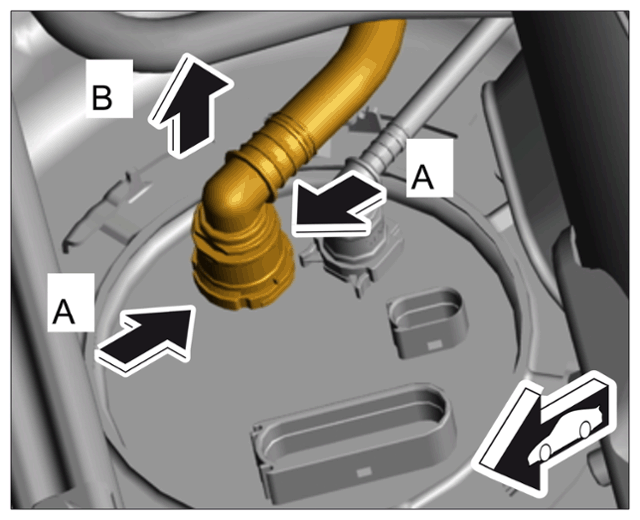

8. Release line at the fuel tank -arrows A-  and pull it off -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel line

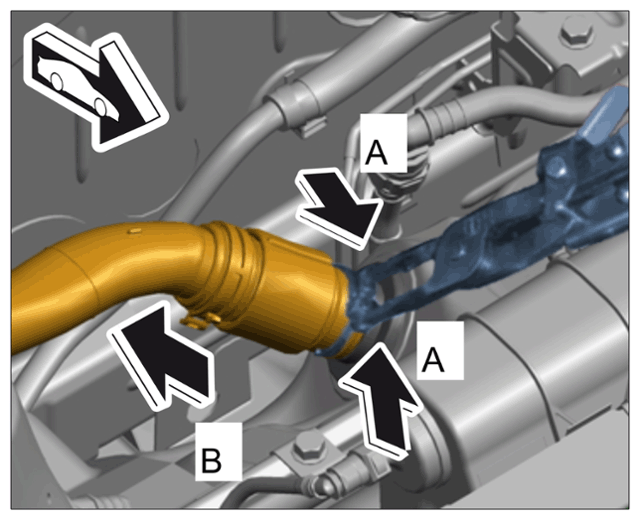

9. Open clamp for filler neck -arrows A-  .
10. Pull filler neck off the connection at the fuel tank -arrow B-  .
11. Guide out filler neck using a twisting motion.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck
