Removing Low-Pressure Sensor

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

Remove low-pressure sensor. Catch escaping fuel.
Release and disconnect cable plug -1- .

Unscrew low-pressure sensor -2- .

To unscrew the sensor, counterhold at the square section -3- of the fuel line using an open-ended wrench.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

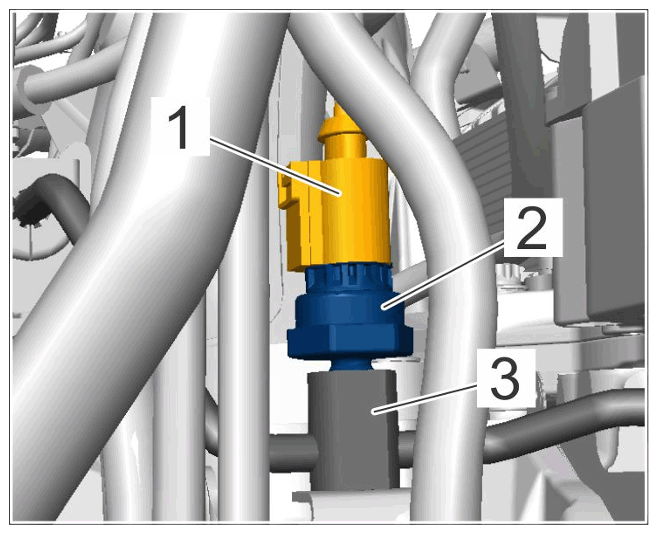

Low-pressure sensor on fuel line
