Installing Low-Pressure Sensor

To tighten the sensor, counterhold at the square section -3- of the fuel line using an open-ended wrench.

Screw in and tighten low-pressure sensor -2-  .

> Tightening torque 25 Nm (19 ftlb.)

Connect the cable plug -1-  and check that it is seated securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

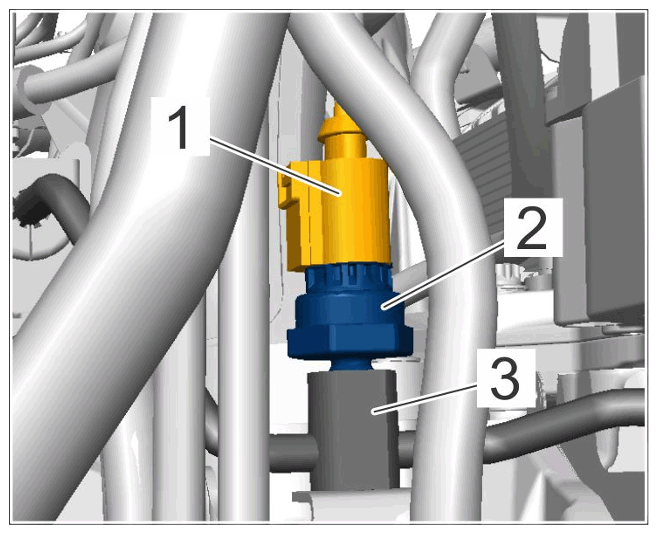

Low-pressure sensor on fuel line
