Component Overview Of Cylinder Head Cover

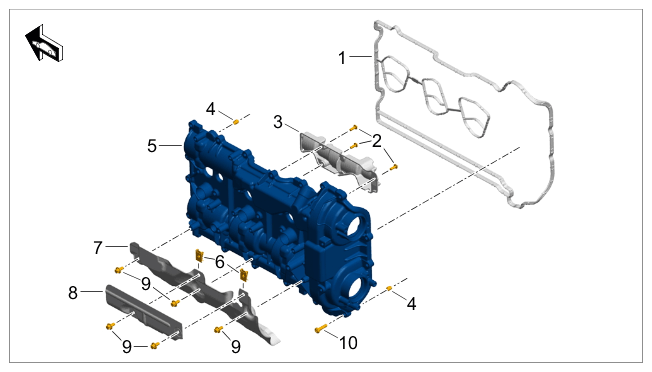

Fig 1: Overview Of Cylinder Head Cover Components Location (Bank 1-3)
G15484855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - cylinder head cover (view of bank 1-3)

1  Cylinder head cover seal
2  Screw, Ma x 14 for pre-separaor
3  Pre-separator
4  Dowel sleeve
5  Cylinder head cover
6  Speed nut, M6
7  Lower part of heat shield
8  Upper part of heat shield
9  Screw, M6 x 12
10  Screw, M6 x 25 - cylinder head cover
