Component Overview

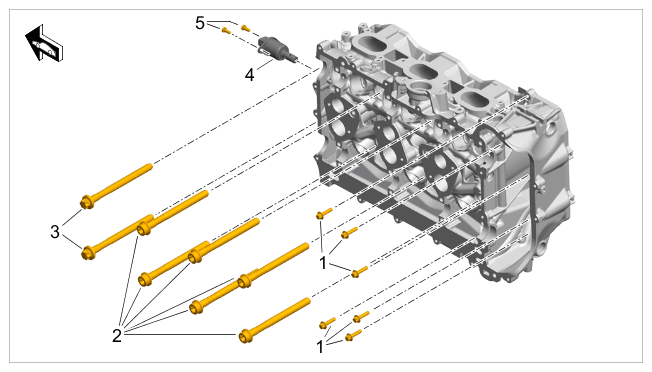

Fig 1: Overview Of Cylinder Head Components Location
G15484797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of cylinder head

1  Screw, M6 x 25
2 and 3  Screw, M12 x 1.5 x 140
4  Solenoid valve for valve lift adjustment
5  Fastening screw, M5 x 12
