Removing Hydraulic Valve For Valve Lift Adjustment

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example.

The removal and installation procedure on the other side is practically identical.

Installation position on cylinder head:  The valve is installed on the flywheel side in the cylinder head.

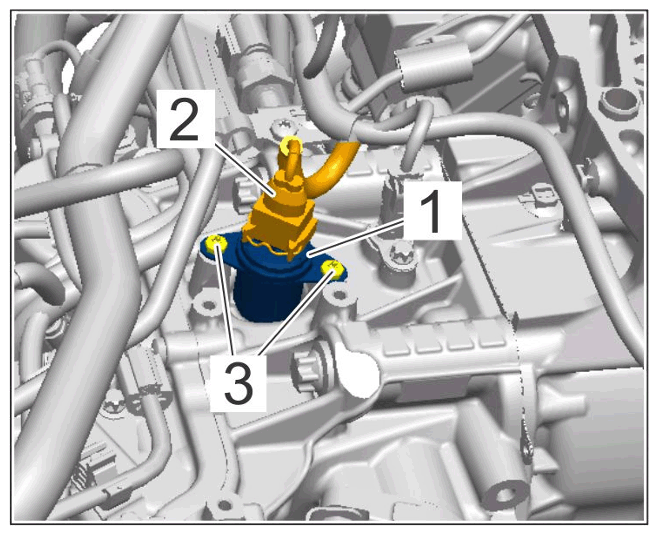

G15484790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve for valve lift adjustment

1  Valve for valve lift adjustment
2  Cable plugs
3  M5 screws
  1. Cylinder bank 4-6:

    Unclip coolant line -1-  at holder -2-

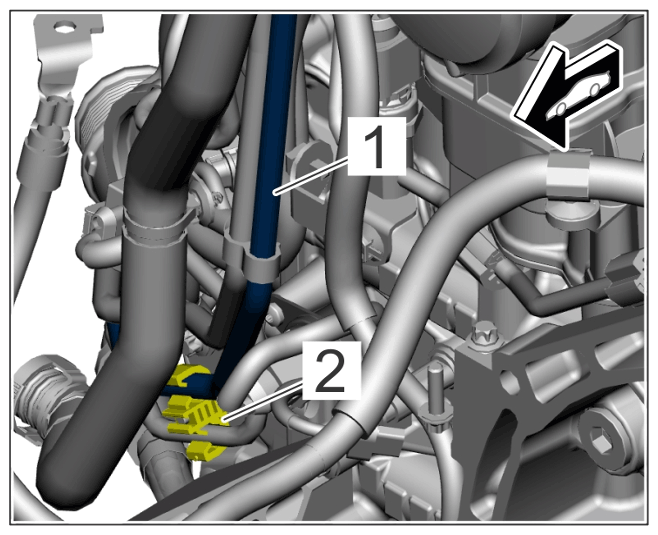

    G15484791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line on turbocharger

  2. Remove valve -1-  .

    Pull off cable plug -2-  .

    Unscrew M5 screw; -3-  and pull off valve.

    Replace O-ring.

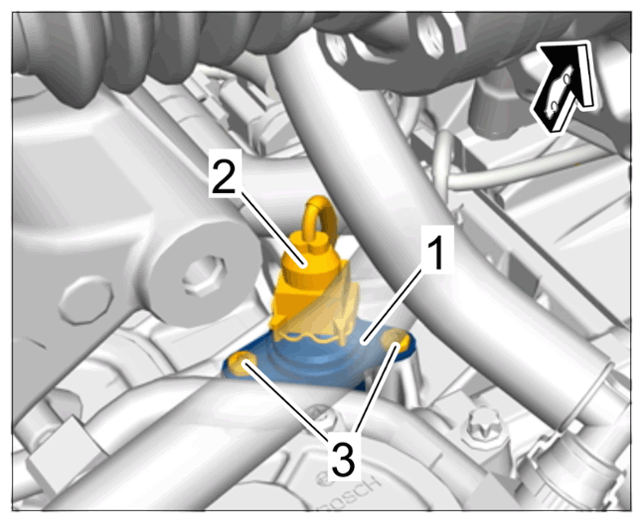

    G15484792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Solenoid valve on cylinder head, front
