Removing Chain Tensioner - Cylinder Bank 1 -3

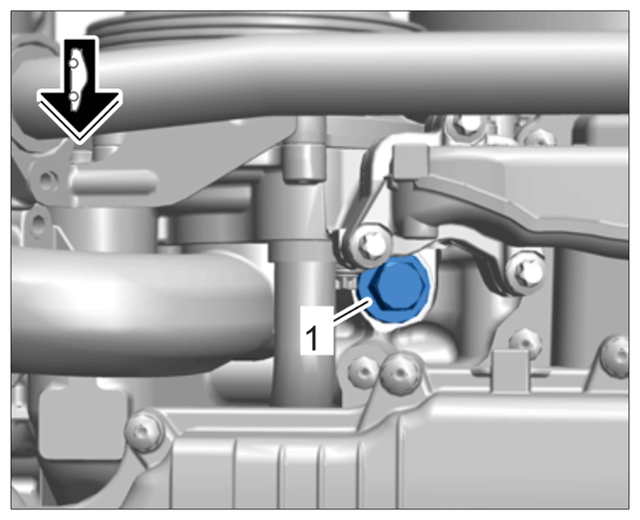

  1. Remove chain tensioner -1-  .

    Unscrew chain tensioner -1-  and set down on a clean surface.

    Collect escaping engine oil and close off the opening using a suitable stopper.

    G15484778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner for cylinder bank 1-3

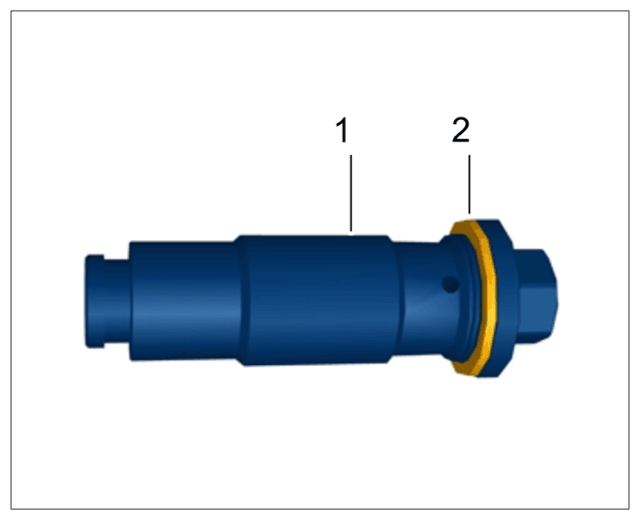

  2. Clean chain tensioner -1-  and sealing face, replace sealing ring -2-  .
    G15484779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner with sealing ring
