Removing Chain TENSIONER - Cylinder Bank 4-6

  1. Remove chain tensioner -1-  .

    Unscrew chain tensioner -1-  and set down on a clean surface.

    Collect escaping engine oil and close off the opening using a suitable stopper.

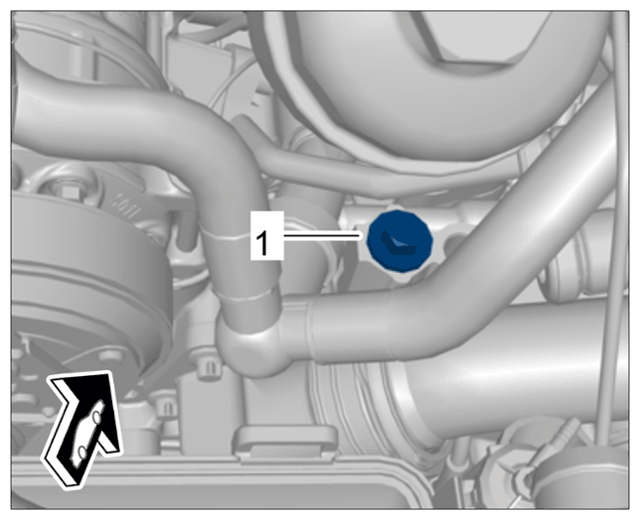

    G15484780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner for cylinder bank 4-6

  2. Clean chain tensioner -1-  and sealing face, replace sealing ring -2-  .

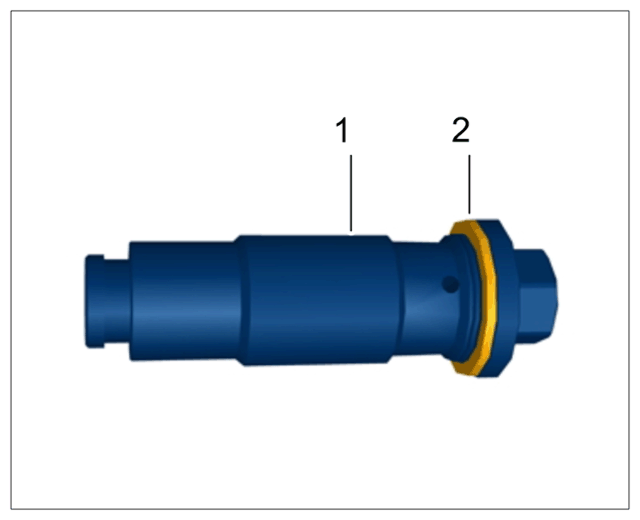

    G15484781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner with sealing ring
