Removing Cover For Drive Belt

  1. Remove covers on drive belt -1-  and generator -2-  .

    Unscrew screws -3-  and remove covers.

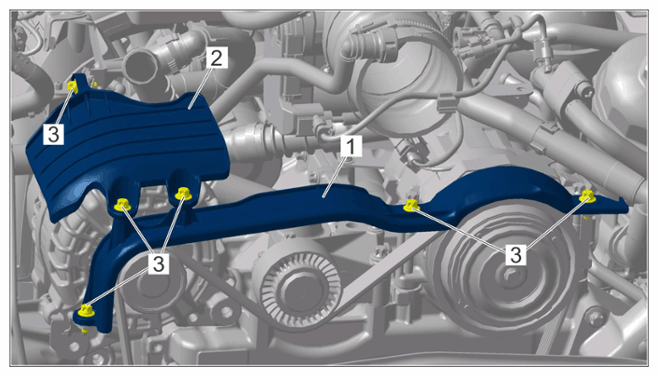

    G15484730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers on drive belt and generator
